Watts - FD-460 - Area Drain with 12" Square Adjustable Top

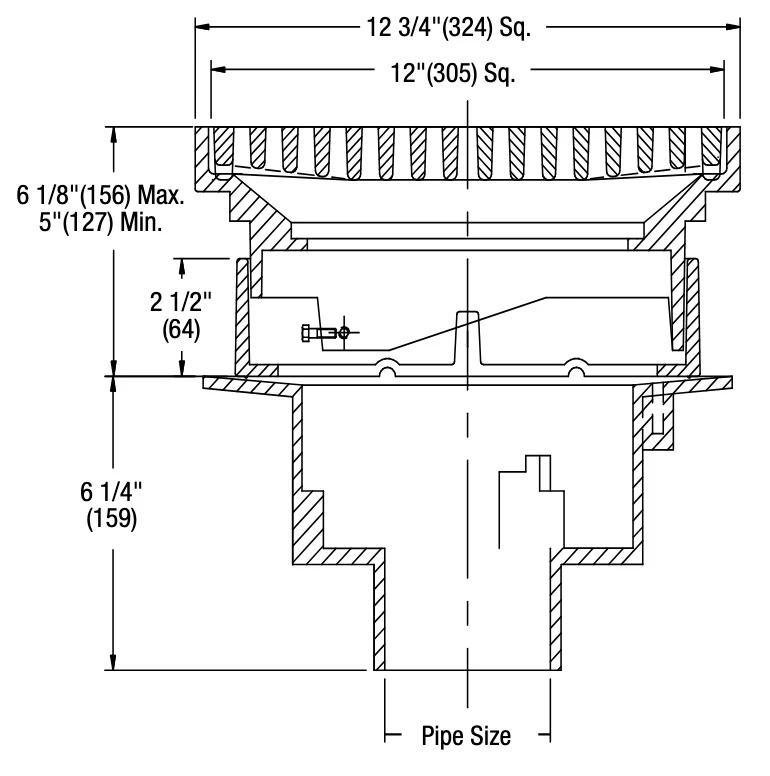

The Watts FD-460 is a heavy-duty epoxy-coated cast-iron area drain designed for commercial installations requiring reliable drainage and robust performance. It comes with an anchor flange for secure mounting, dual weepholes for perimeter seepage capture, and a 12¾″ × 12¾″ square adjustable top fitted with a heel-proof ductile-iron grate. Standard outlet connection is no-hub.
Key Features
-
Adjustable 12¾″ × 12¾″ square top plate to align with finished floor elevation
-
Epoxy-coated cast-iron body with anchor flange and dual weepholes to handle perimeter seepage
-
Heel-proof ductile-iron grate rated for extra-heavy-duty traffic conditions
-
Standard no-hub outlet connection with multiple size options available
-
Load-rated for XHD (extra-heavy-duty) service environments
Downloads:
Original: $3,091.00
-65%$3,091.00
$1,081.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Watts FD-460 is a heavy-duty epoxy-coated cast-iron area drain designed for commercial installations requiring reliable drainage and robust performance. It comes with an anchor flange for secure mounting, dual weepholes for perimeter seepage capture, and a 12¾″ × 12¾″ square adjustable top fitted with a heel-proof ductile-iron grate. Standard outlet connection is no-hub.
Key Features
-
Adjustable 12¾″ × 12¾″ square top plate to align with finished floor elevation
-
Epoxy-coated cast-iron body with anchor flange and dual weepholes to handle perimeter seepage
-
Heel-proof ductile-iron grate rated for extra-heavy-duty traffic conditions
-
Standard no-hub outlet connection with multiple size options available
-
Load-rated for XHD (extra-heavy-duty) service environments
