Watts - FD-340-SET - Area Drain with 12 in. Round Adjustable Top, Grate Supported by Bucket

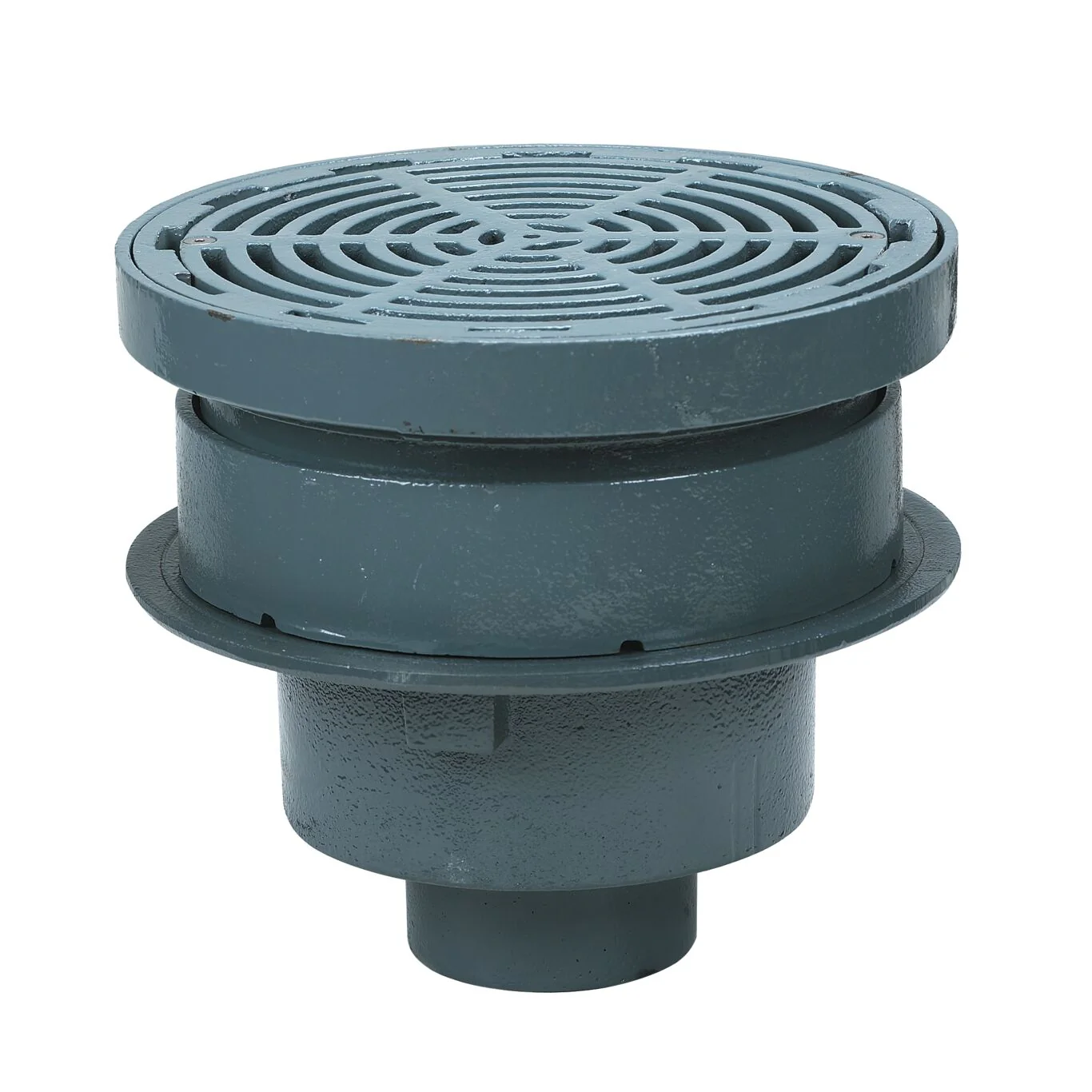

The Watts FD-340-SET is an epoxy-coated cast-iron area drain that supports heavy commercial traffic. It features an anchor flange, a membrane clamp with weepholes to capture perimeter seepage, a 12½″ diameter adjustable top for finished-floor alignment, and a loose-set heel-proof ductile iron grate supported by a sediment-bucket design. Standard connection is no-hub.
Key Features
-
12½″ round adjustable top enabling field height adjustment to match finished floor level
-
Epoxy-coated cast-iron body with anchor flange and dual weepholes for enhanced seepage control
-
Loose-set heel-proof ductile iron grate supported by a removable bucket for maintenance ease
-
Standard no-hub outlet connection with multiple outlet size options for flexibility
-
Rated for heavy-duty commercial load environments
Downloads:
Original: $2,882.00
-65%$2,882.00
$1,008.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Watts FD-340-SET is an epoxy-coated cast-iron area drain that supports heavy commercial traffic. It features an anchor flange, a membrane clamp with weepholes to capture perimeter seepage, a 12½″ diameter adjustable top for finished-floor alignment, and a loose-set heel-proof ductile iron grate supported by a sediment-bucket design. Standard connection is no-hub.
Key Features
-
12½″ round adjustable top enabling field height adjustment to match finished floor level
-
Epoxy-coated cast-iron body with anchor flange and dual weepholes for enhanced seepage control
-
Loose-set heel-proof ductile iron grate supported by a removable bucket for maintenance ease
-
Standard no-hub outlet connection with multiple outlet size options for flexibility
-
Rated for heavy-duty commercial load environments
Downloads:
