Watts - FD-1190-PR - Cast Iron Adjustable Floor Drain with Integrated Level

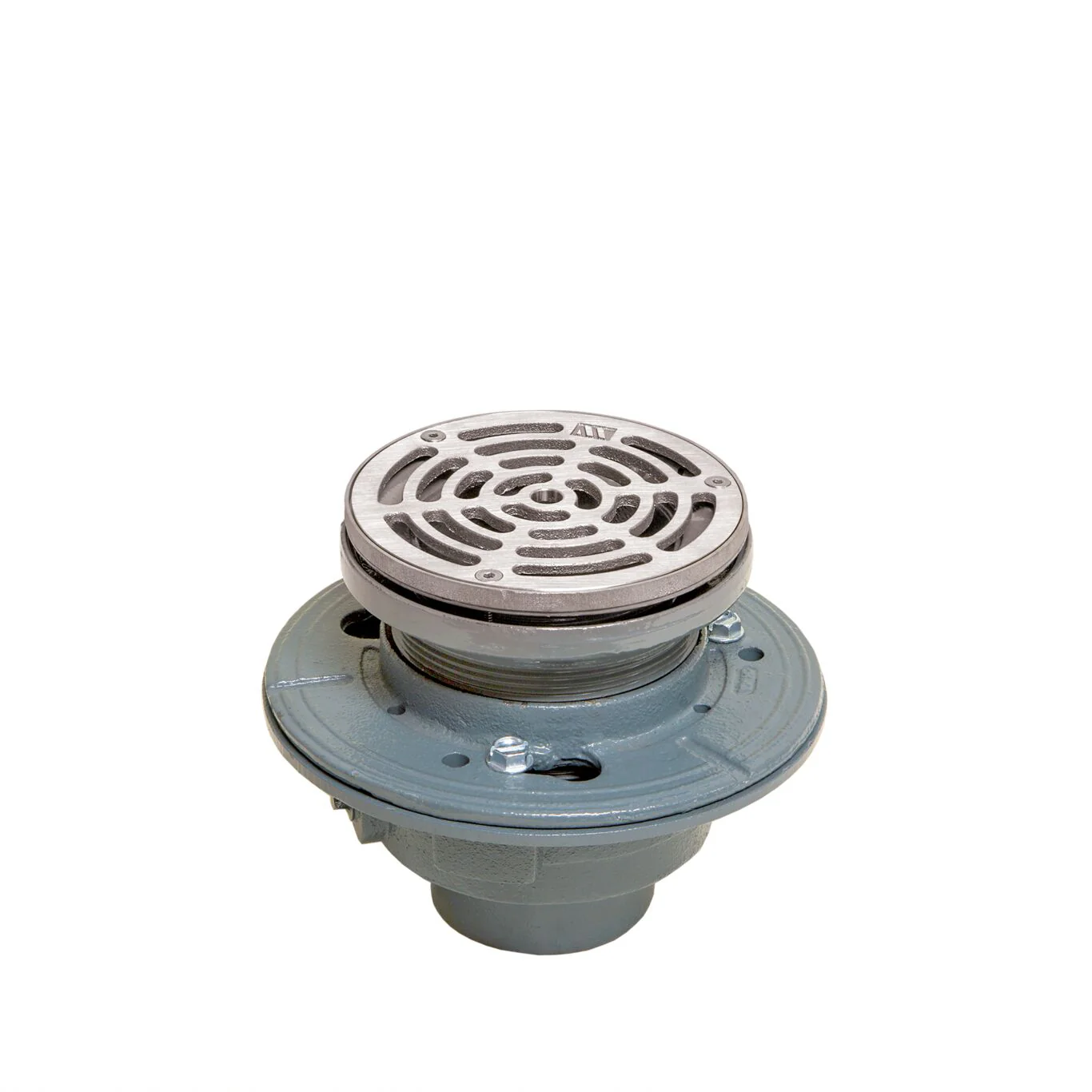

Watts’ FD-1190-PR is a specification-grade floor drain featuring an epoxy-coated cast-iron body with anchor flange, a reversible clamping collar with primary and secondary weepholes to capture perimeter seepage, and a post-pour adjustable round heel-proof stainless-steel strainer complete with an integrated bubble level and leveling shims. The standard outlet connection is no-hub, with multiple size and material options available.

Key Features

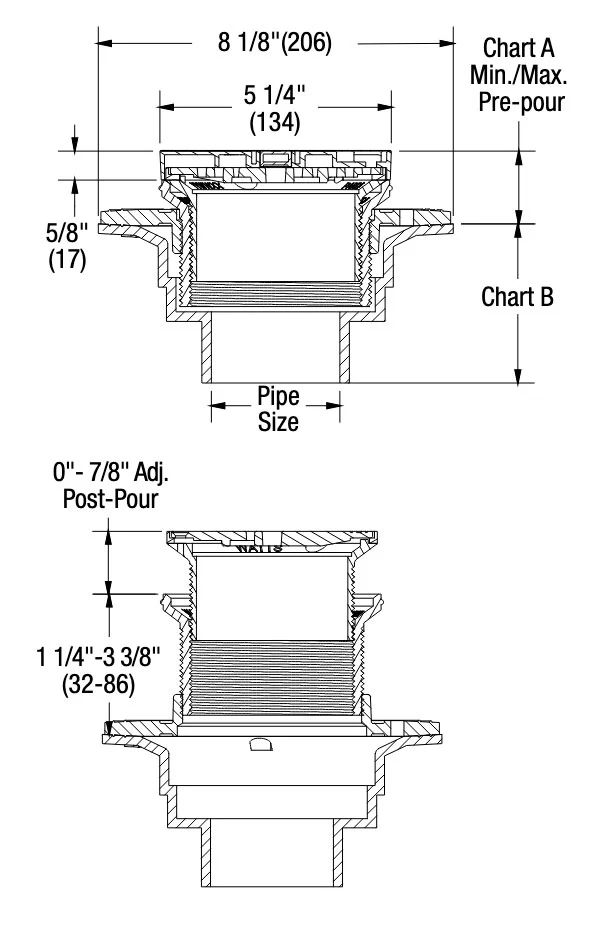

• Post-pour adjustability (up to ⅞″) and integrated bubble level ensure precise installation and alignment.

• Dual drainage design (primary + secondary weepholes) enhances resistance to water leakage and improves system reliability.

• Adjustable round heel-proof stainless-steel strainer adapts to varying floor finishes.

• Epoxy-coated cast-iron body and anchor flange provide long-term durability in commercial environments.

• Standard no-hub outlet with optional push-on, threaded or inside-caulk configurations for installation flexibility.

Downloads:

• Specification Sheet
