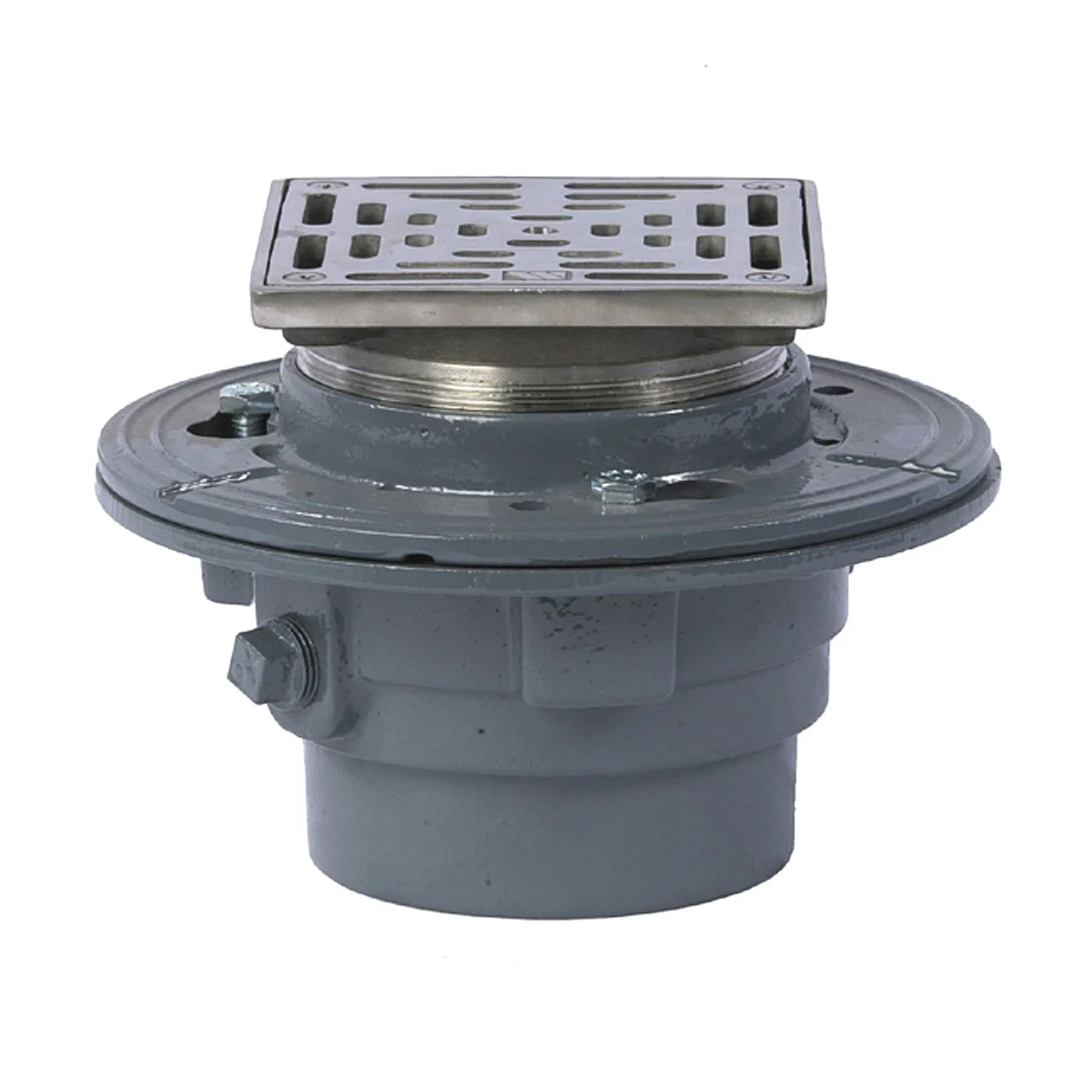

Watts - FD-1100-L - Floor Drain with Square Stainless Steel Strainer

The Watts FD-1100-L is a heavy-duty floor drain designed for demanding commercial and industrial environments. It features an epoxy-coated cast-iron body for long-term durability, an anchor flange for secure mounting, and a reversible clamping collar. The dual weepholes (primary and secondary) capture perimeter seepage, while an adjustable square stainless-steel strainer offers enhanced load capacity and cleanliness. The drain comes standard with a no-hub outlet.

Key Features

• Epoxy-coated cast-iron body with anchor flange for robust installation

• Reversible clamping collar plus primary and secondary weepholes to manage seepage

• Adjustable heavy-duty square stainless-steel strainer — heel-proof and designed for heavy traffic

• Standard no-hub outlet (other outlet and connection options available)

• Rated for heavy commercial traffic environments with strainer sizes available in 5″×5″, 6″×6″, or 8″×8″

Downloads:

• Specification Sheet
