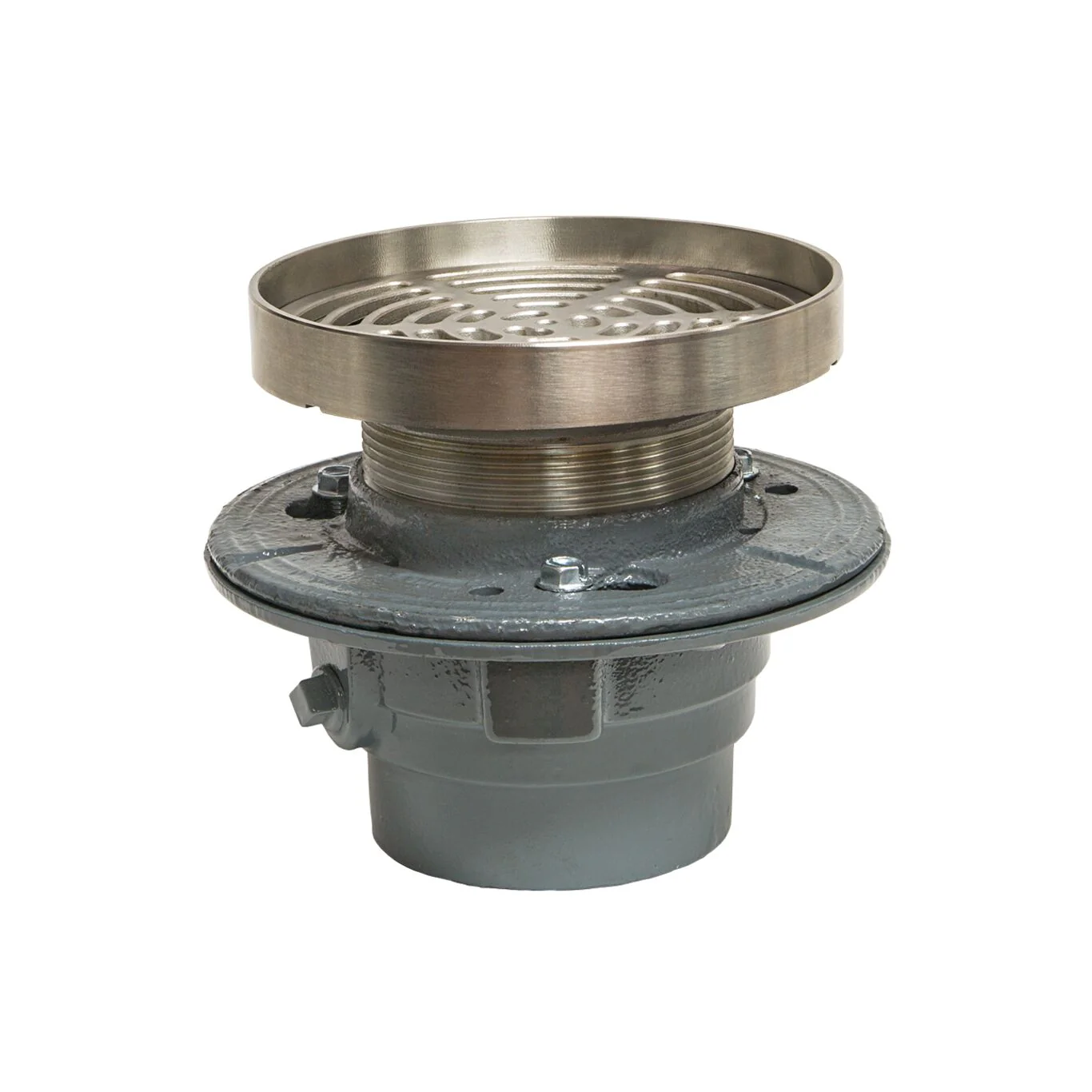

Watts - FD-1100-ER - Floor Drain with Stainless Steel Extended Rim Strainer

The Watts FD-1100-ER is a specification-grade floor drain designed for commercial and institutional environments where both durability and seamless integration with floor finishes are required. The unit features an epoxy-coated cast-iron body with an anchor flange for secure installation, as well as a reversible clamping collar equipped with both primary and secondary weepholes for enhanced drainage resilience. The top is furnished with a round stainless steel strainer and an extended rim designed to prevent overflow and promote flush performance with surrounding flooring. A no-hub outlet is standard for connection flexibility.

Key Features

• Epoxy-coated cast-iron construction with anchor flange for secure mounting

• Reversible clamping collar with dual weepholes to capture perimeter seepage effectively

• Adjustable round stainless steel strainer with extended rim to prevent overflow and improve finish integration

• Standard no-hub outlet for compatibility with common drainage piping systems

• Built for commercial use, with multiple outlet sizes and configurations available for tailored installation

Downloads:

• Specification Sheet
