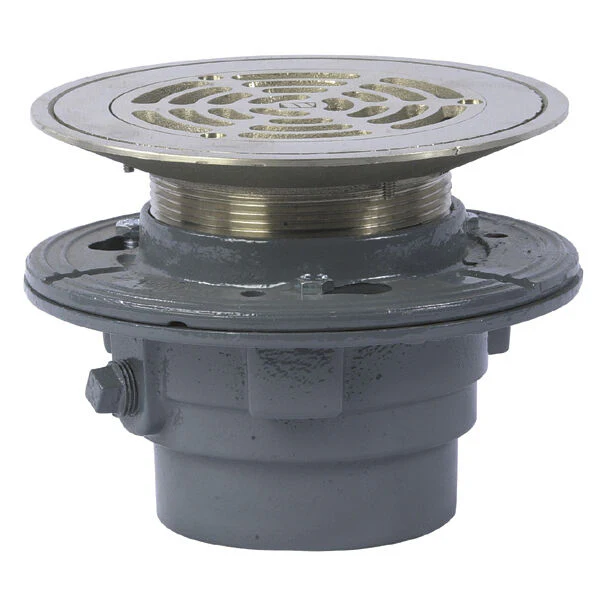

Watts - FD-100-FC - Floor Drain with Surface Membrane Clamp

The Watts FD-100-FC is a high-performance floor drain engineered for environments where membrane flooring is installed and effective drainage is critical. Constructed from epoxy-coated cast iron, it features an anchor flange, a reversible clamping collar with primary and secondary weepholes for double-drainage protection, and an adjustable heel-proof nickel bronze strainer with a surface-membrane clamp. A standard no-hub outlet simplifies plumbing connections.

Key Features

• Epoxy-coated cast iron body with anchor flange for durability and secure installation

• Reversible clamping collar and dual weepholes to manage seepage and ensure drainage continuity

• Adjustable heel-proof nickel bronze strainer and surface-membrane clamp, optimized for rubberized or poured-in flooring systems

• Standard no-hub outlet, with options for push-on, threaded or inside-caulk connections

• Suitable for heavy commercial traffic, membranes, and sealed floor surfaces

Downloads:

• Specification Sheet
