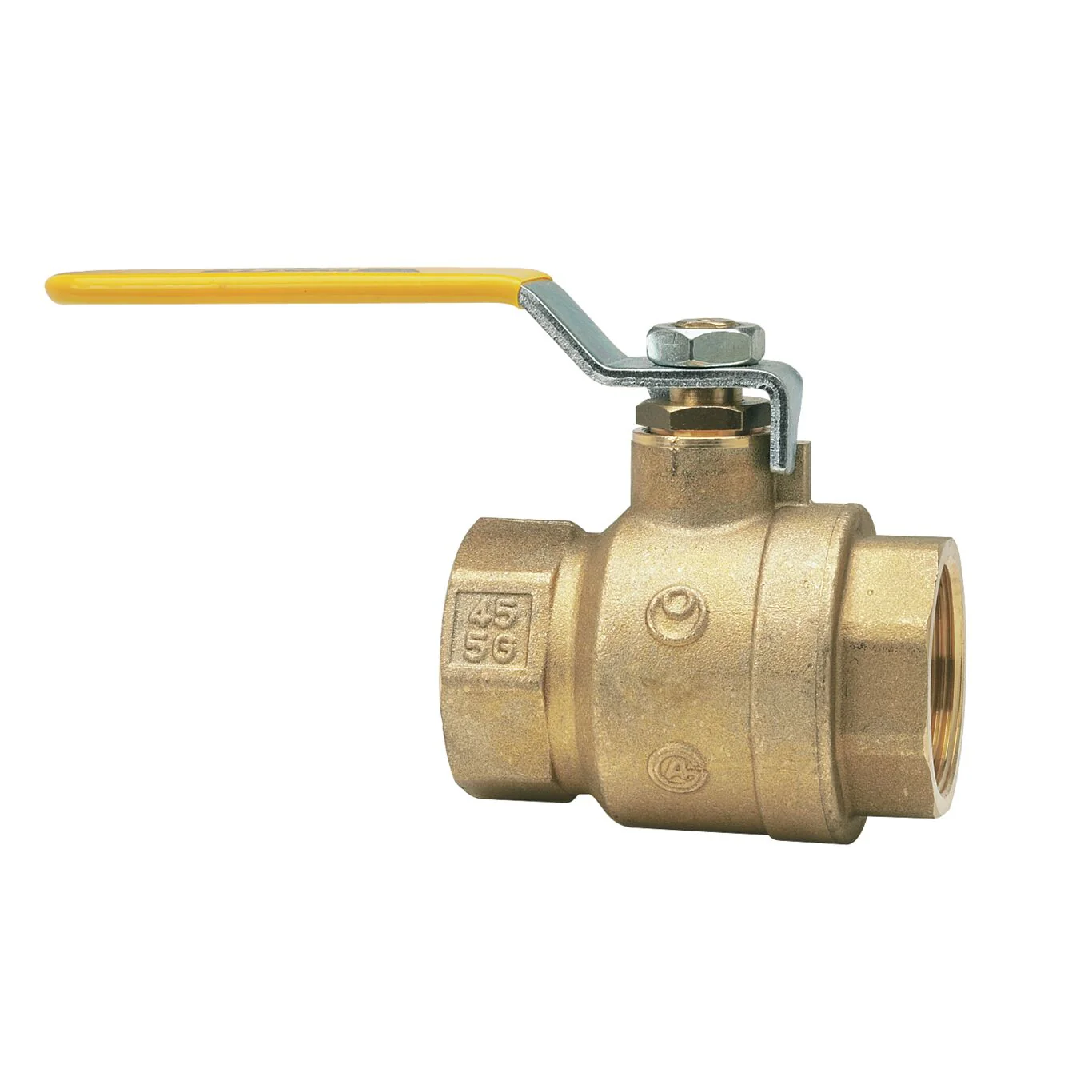

Watts FBV-3C 2 UL-FM - Part of the FBV-3C Series

This 2 inch 2-piece full port brass ball valve, series FBV-3C, is used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter and steel handle.

Features

• Trim and drain model with UL/FM approvals
• Full port
• Bottom loaded blowout proof stem
• Made of durable brass

Specifications
Actuation	No
Assembled Dry	No
Balance Stop Plate	No
Ball Material	Brass
Body Finish	Brass
Body Material	Brass
Brand	Watts
Buy American Act Compliant	NO
Control Type	Lever Handle
EAN	098268340945
Inlet Connection Size	2 IN
Inlet Connection Size-Metric	50 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	400
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Outlet Connection Size	2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0547132
Port Type	Full
Seat Material	Virgin PTFE
Series	FBV-3C
Stem Packing Material	Virgin PTFE
Stem Shaft Material	Brass
Stem Type	Bottom Loaded Blowout Proof
Thrust Washer Material	Virgin PTFE
Valve Style	2-piece
WOG Rating	600 PSI

• Specification Sheet - FBV-3C, FBVS-3C

UPC - 098268340945
