Watts F127SS-208 3 - Part of the F127SS Series

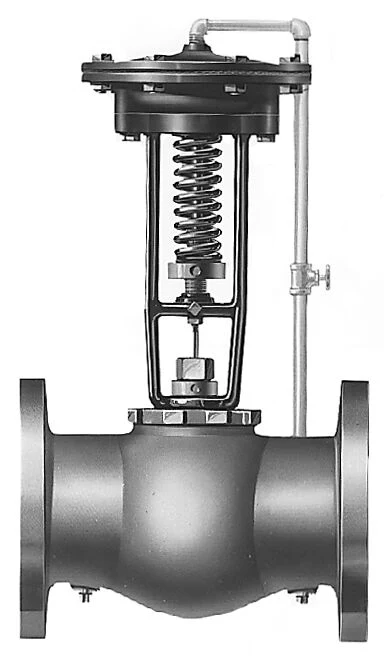

This 3 inch process steam pressure regulator, model 208, is a single seated, direct acting, diaphragm type regulator. It is ideal for institutional, industrial, and commercial applications to regulate steam pressure in the mainline and high capacity process service heating applications. It features a cast iron body, flanged end connections and stainless steel diaphragm, seat and disc internals to extend the service life. The springs and diaphragm chamber assembly is easily changed and the valve is simple to adjust when the need to quickly restore the regulator service is required. The maximum working initial pressures is up to 125 psi (8.6 bar).

Features

• Cast iron body with flanged connections
• Stainless steel single seated
• Direct acting diaphragm
• Standardly furnished with stainless steel valve disc
• Replaceable springs and diaphragm
• Quickly and easily serviceable in line without special tools
• Maximum working initial pressure up to 125 psi (8.6 bar)
• Engineered and recommended for mainline and high capacity process service heating applications
• Valve is simple to adjust

Specifications
Adjustable Reduced Pressure Range	100 to 50
Body Material	Iron
Brand	Watts
Gauge Option	No Gauge
Inlet Connection Size	3 IN
Inlet Connection Type	Flanged Joint
Lead Free	Not In Scope
Maximum Operating Temperature-Fahrenheit	350
Maximum Working Pressure-BAR	8.60
Maximum Working Pressure-PSI	125
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	3 IN
Outlet Connection Type	Flanged Joint
Valve Style	Standard

• Specification Sheet - 127SS

UPC - 098268095029
