Watts F115-74 3-150 - Part of the LFF115-74 Series

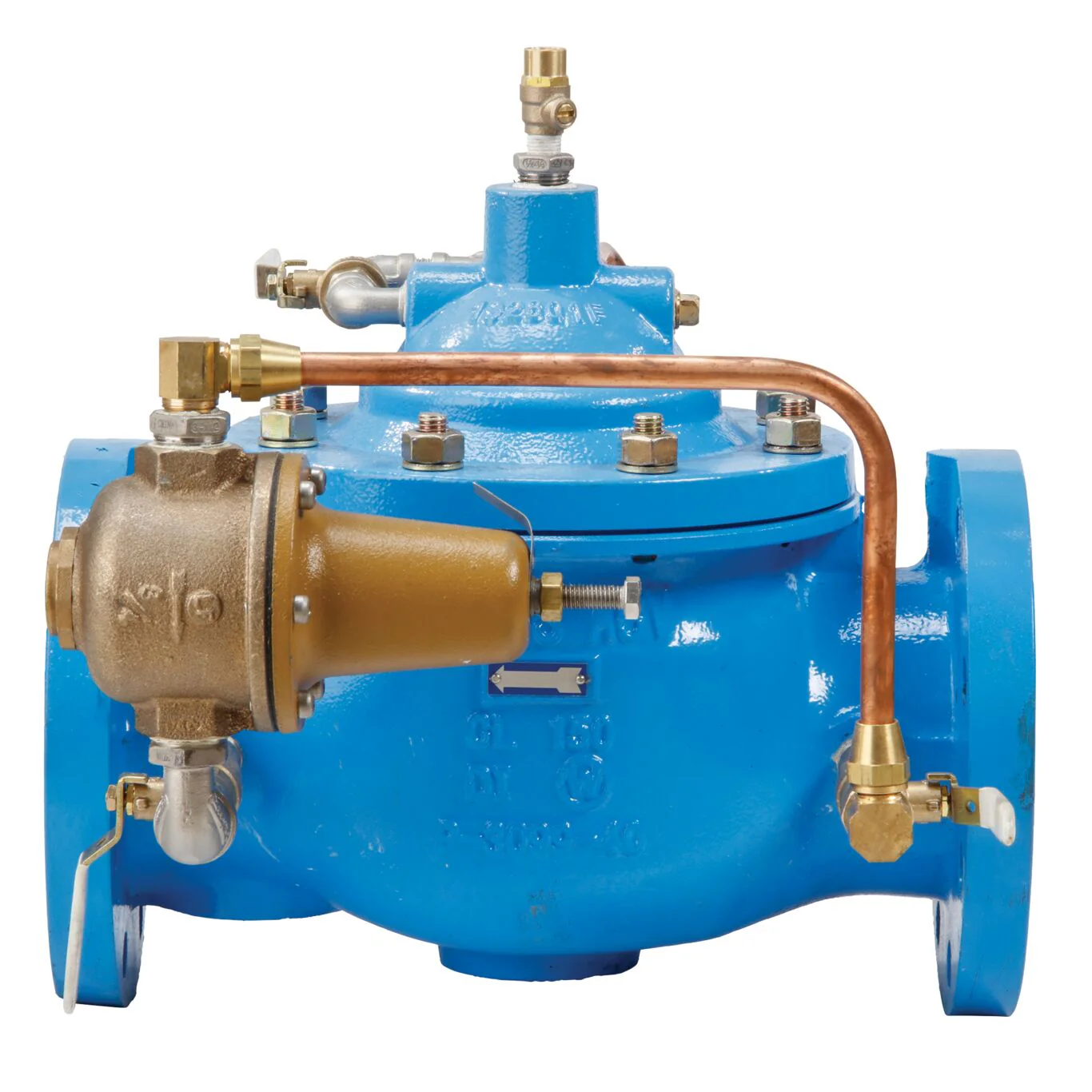

This 3 inch class 150 Watts ACV pressure reducing control valve with low flow by-pass, model 115-74, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. A Flow rate below the normal range of the main line pressure reducing control valve is handled by a separate, valve mounted, direct acting low flow by-pass pressure reducing valve.
Features- Globe pattern
- Class 150 flanged
- Epoxy coated
- Copper tubing/brass fittings
| Specifications | |
|---|---|
| ArmorTek Technology | No |
| Brand | Watts |
| Coating | Bonded Epoxy |
| EAN | 098268278958 |
| Lead Free | YES |
| Part Number | 8994-20 |
| Series | LFF115-74 |
| Warranty Name | Standard Watts Warranty |
- Schematic - Automatic Control Valve LFF115-74 Globe
