Watts DBF-04-111-2G-M2 6 - Part of the DBF-04 Series

Product image 1

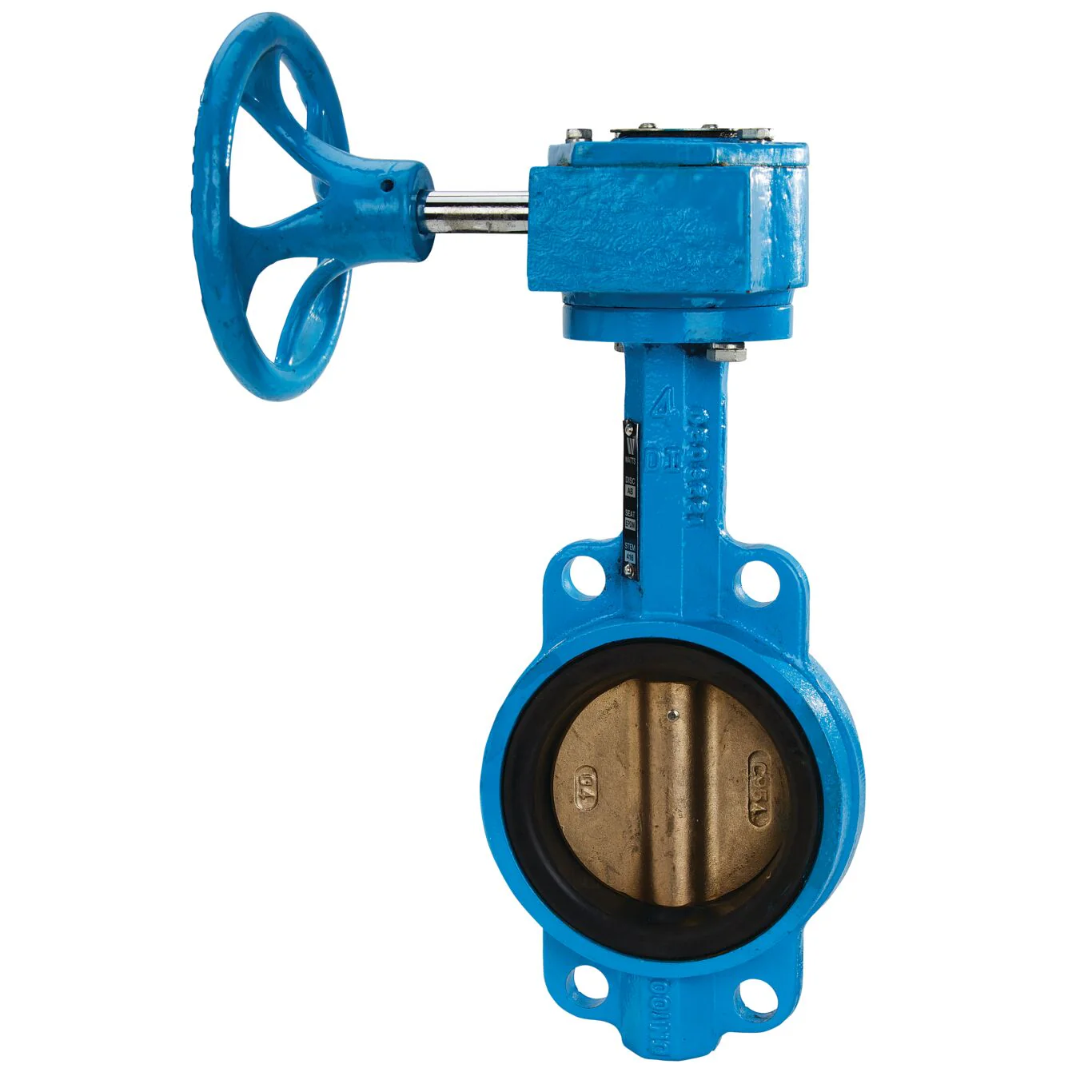

Watts DBF-04-111-2G-M2 6 - Part of the DBF-04 Series

This 6 IN domestic wafer style butterfly valve, model DBF-04-111-2G-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features cast iron body construction, ductile iron disc, Buna-N seat, a stainless steel shaft, mounting pad for gear operator.

Features
  • Gear operator
  • Ductile iron body
  • Ductile iron disc
  • Buna-N seat
Specifications
Body Material Iron
Brand Watts
Class Rating 125 or 150
Control Type Gear Operator
CV Rating 1579 GPM
Disc Material Ductile Iron
EAN 098268596410
Inlet Connection Size 6 IN
Inlet Connection Type Wafer
Lead Free YES
Maximum Operating Temperature-Fahrenheit 176
Maximum Working Pressure-PSI 200
Minimum Temperature-Fahrenheit 33
Operating Torque-Dry 1542 in-lbs
Operating Torque-Wet 907 in-lbs
Outlet Connection Size 6 IN
Outlet Connection Type Wafer
Part Number 0525428
Seat Material Buna-N
Series DBF-04
Silicone Free Yes
Stem Shaft Material Stainless Steel
Valve Style Wafer
  • Specification Sheet - DBF
UPC - 098268596410
$619.97

Original: $1,771.35

-65%
Watts DBF-04-111-2G-M2 6 - Part of the DBF-04 Series—

$1,771.35

$619.97

Product Information

Shipping & Returns

Description

This 6 IN domestic wafer style butterfly valve, model DBF-04-111-2G-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features cast iron body construction, ductile iron disc, Buna-N seat, a stainless steel shaft, mounting pad for gear operator.

Features
  • Gear operator
  • Ductile iron body
  • Ductile iron disc
  • Buna-N seat
Specifications
Body Material Iron
Brand Watts
Class Rating 125 or 150
Control Type Gear Operator
CV Rating 1579 GPM
Disc Material Ductile Iron
EAN 098268596410
Inlet Connection Size 6 IN
Inlet Connection Type Wafer
Lead Free YES
Maximum Operating Temperature-Fahrenheit 176
Maximum Working Pressure-PSI 200
Minimum Temperature-Fahrenheit 33
Operating Torque-Dry 1542 in-lbs
Operating Torque-Wet 907 in-lbs
Outlet Connection Size 6 IN
Outlet Connection Type Wafer
Part Number 0525428
Seat Material Buna-N
Series DBF-04
Silicone Free Yes
Stem Shaft Material Stainless Steel
Valve Style Wafer
  • Specification Sheet - DBF
UPC - 098268596410
