Watts CSM-81-F 5 - Part of the CSM-81-F Series

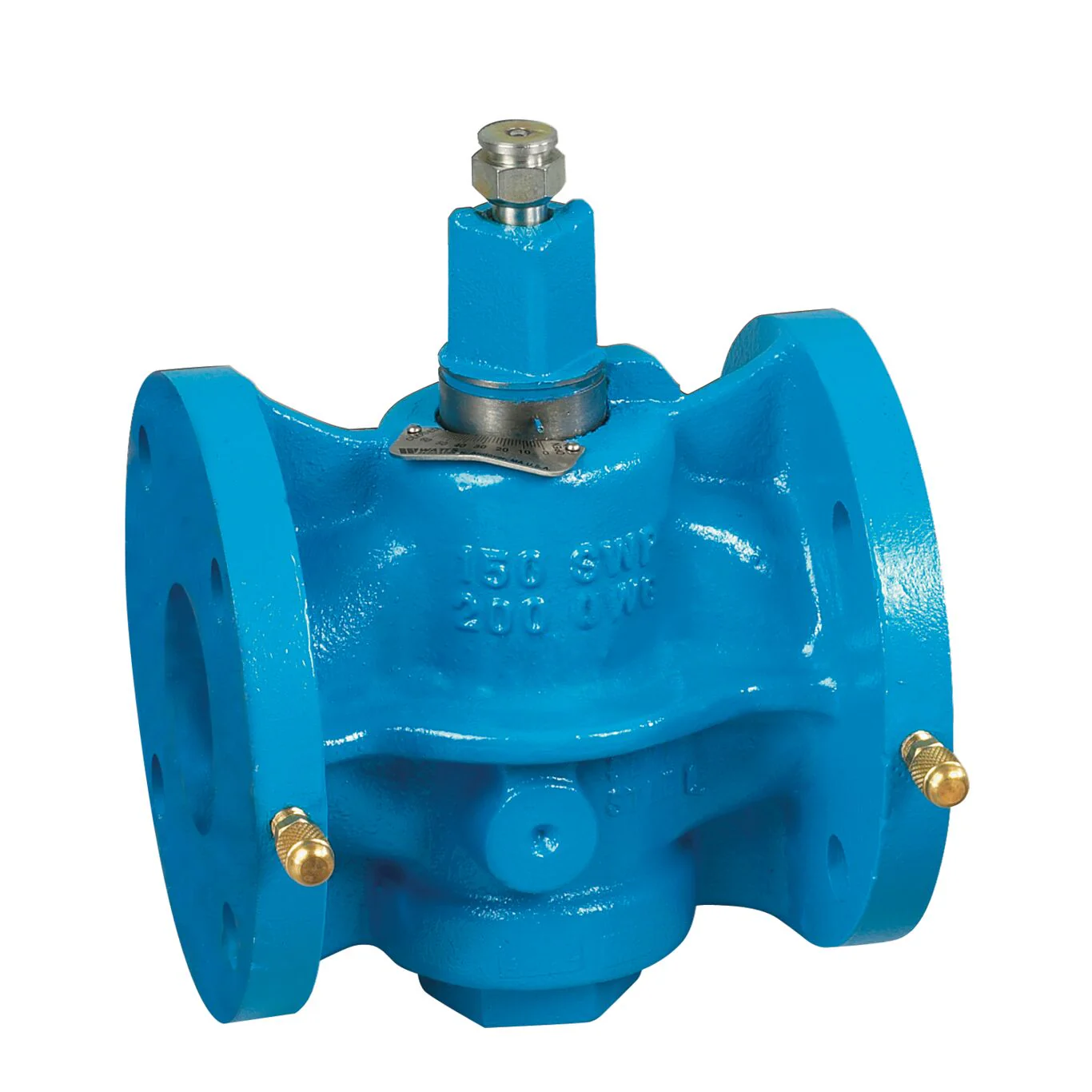

This 5 inch flow measurement valve monitors system flow in medium to high flow rate HVAC units providing a highly accurate flow measurement. It consists of semi-steel body construction with a low-torque cylindrical plug design, flanged end connections, checked metering ports with drip caps, position indicator plate, positive shutoff, and two brass pressure taps. It is ideal in hot/chilled water units such as fan coil units, water source heat pumps, reheat coils, panel coils, branch lines, and pumps.

Features

• Accurate flow measurement
• Flanged end connections
• Positive shutoff
• Low torque

Specifications
Body Material	Semi Steel
Brand	Watts
EAN	098268832396
Inlet Connection Size	5 IN
Inlet Connection Size-Metric	125 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	PTF
Lead Free	NO
Maximum Temperature-Fahrenheit	250
Maximum Working Pressure-BAR	12.00
Maximum Working Pressure-PSI	175
Outlet Connection Size	5 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	PTF
Part Number	0036542
Series	CSM-81-F

• Specification Sheet - CSM-81-F

UPC - 098268832396
