Watts BF-04-111-15-M2 6 - Part of the BF-04 Series

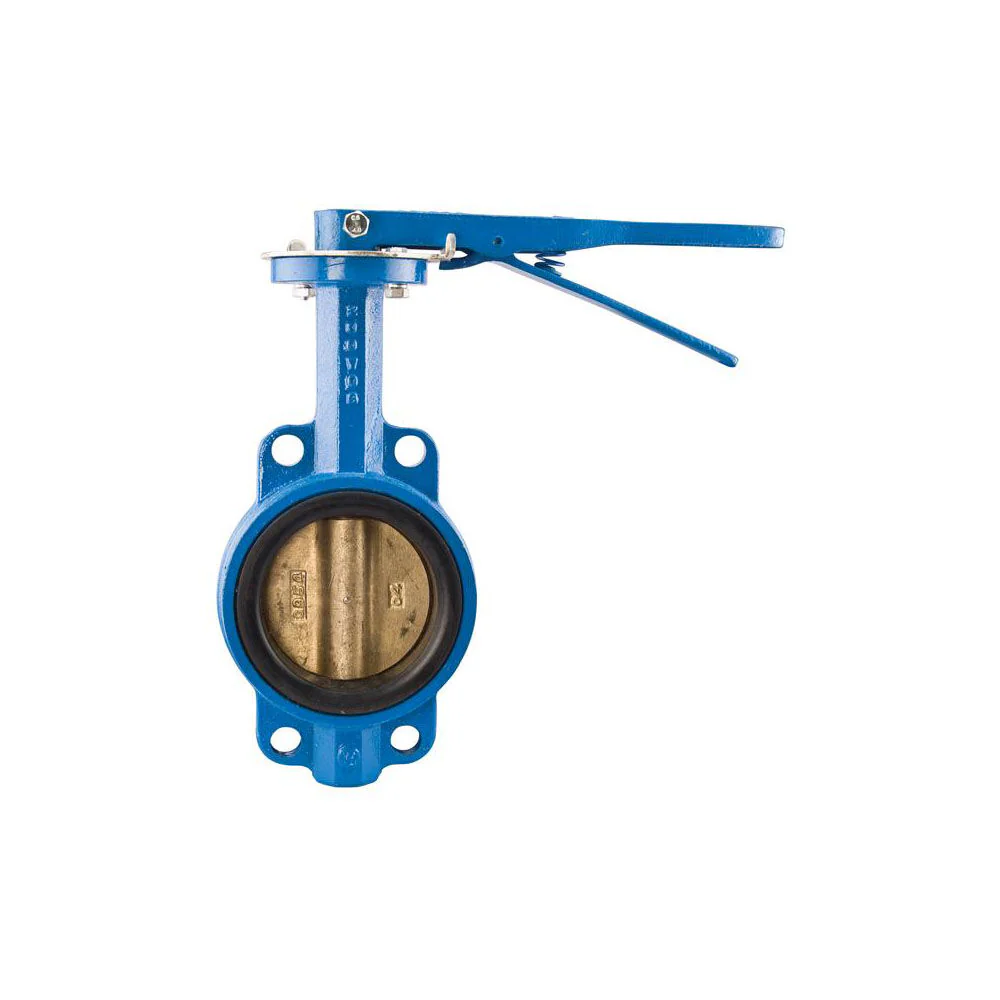

This 6 inch wafer style butterfly valve, model BF-04-111-15-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features cast iron body construction, ductile iron disc, EPDM seat, stainless steel shaft, mounting pad for 10 position lever.

Features

• Cast iron body
• Ductile iron disc
• EPDM seat
• Lever handle

Specifications
Body Material	Ductile Iron
Brand	Watts
Buy American Act Compliant	NO
Class Rating	125 or 150
Control Type	Lever Handle
CV Rating	1579 GPM
Disc Material	Stainless Steel
EAN	098268606843
Inlet Connection Size	6 IN
Inlet Connection Type	Wafer
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	248
Maximum Working Pressure-PSI	200
Minimum Temperature-Fahrenheit	33
Operating Torque-Dry	1542 in-lbs
Operating Torque-Wet	907 in-lbs
Outlet Connection Size	6 IN
Outlet Connection Type	Wafer
Part Number	0525861
Seat Material	EPDM
Series	BF-04
Silicone Free	Yes
Stem Shaft Material	416 Stainless Steel
Valve Style	Wafer

• Specification Sheet - BF-03-M2, BF-04-M2

UPC - 098268606843
