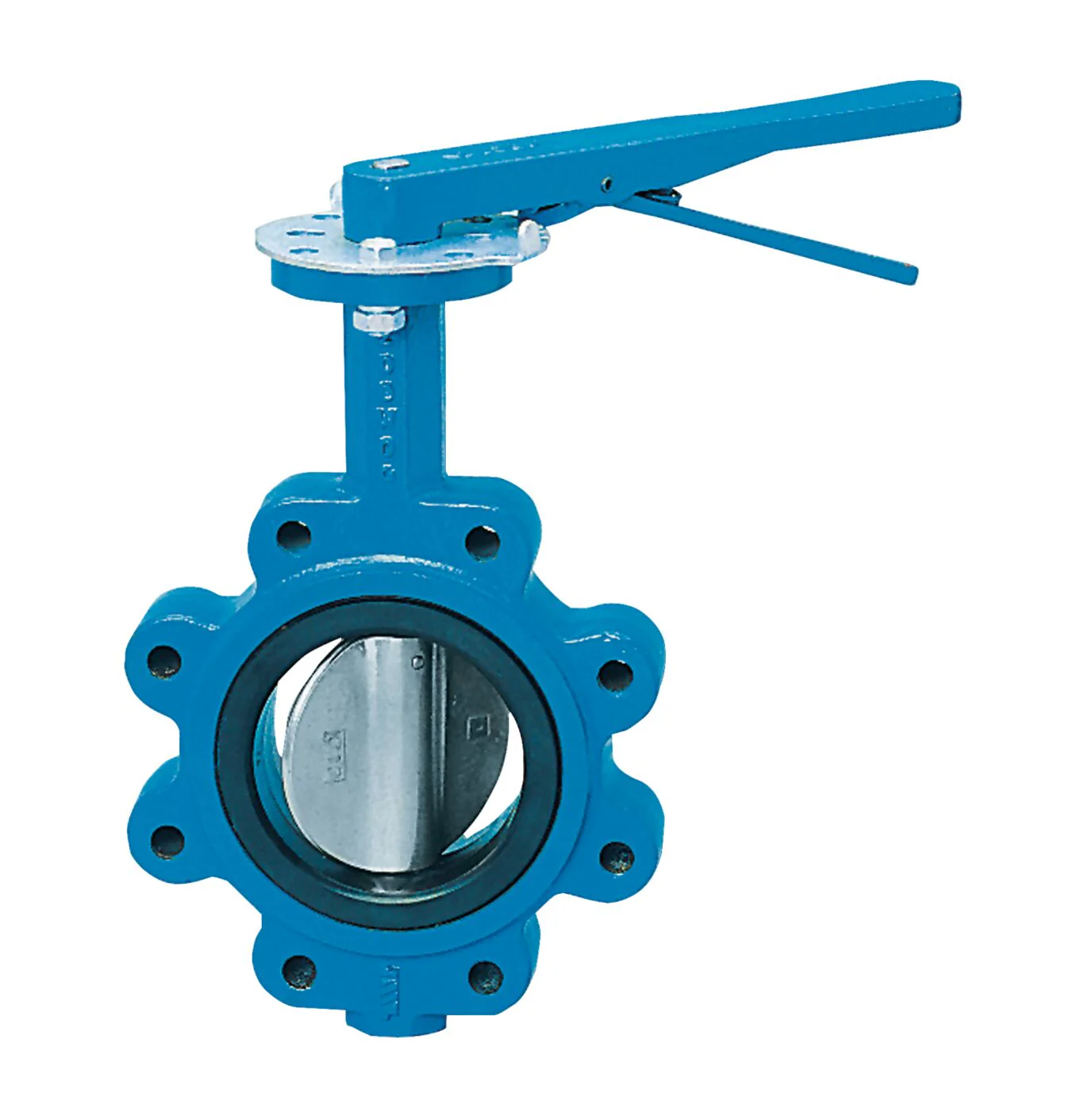

Watts BF-03-131-15-M2 10 - Part of the BF-03 Series

This 10 inch full lug style butterfly valve, model BF-03-131-15-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features iron body construction, stainless steel disc, EPDM seat, a stainless steel shaft, mounting pad for 10-position lever.

Features

• Cast iron body
• 316 stainless steel disc
• EPDM seat
• Lever handle

Specifications
Body Material	Ductile Iron
Brand	Watts
Buy American Act Compliant	NO
Class Rating	125 or 150
Control Type	Lever Handle
CV Rating	5340 GPM
Disc Material	316 Stainless Steel
EAN	098268604788
Inlet Connection Size	10 IN
Inlet Connection Type	Lug
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	248
Maximum Working Pressure-PSI	200
Minimum Temperature-Fahrenheit	33
Operating Torque-Dry	4857 in-lbs
Operating Torque-Wet	2500 in-lbs
Outlet Connection Size	10 IN
Outlet Connection Type	Lug
Outlet Thread Type	Does Not Apply To Product
Part Number	0525677
Seat Material	EPDM
Series	BF-03
Silicone Free	Yes
Stem Shaft Material	316 Stainless Steel
Valve Style	Lug

• Specification Sheet - BF-03-M2, BF-04-M2

UPC - 098268604788
