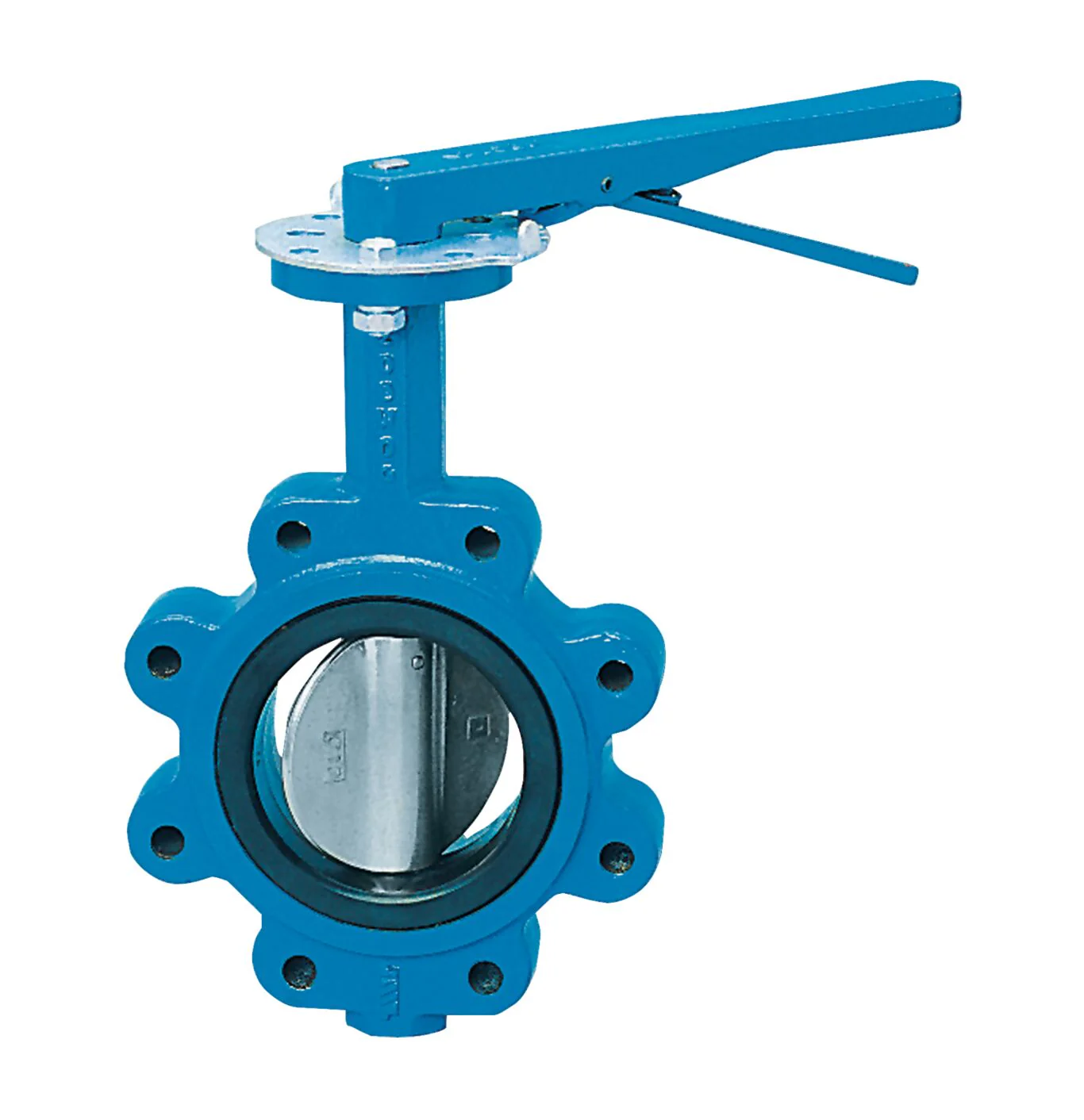

Watts BF-03-111-15-M2 10 - Part of the BF-03 Series

This 10 inch full lug style butterfly valve, model BF-03-111-15-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features iron body construction, ductile iron disc, a stainless steel shaft, EPDM seat, mounting pad for 10-position lever.

Features

• Cast iron body
• Ductile iron disc
• EPDM seat
• Lever handle

Specifications
Body Material	Ductile Iron
Brand	Watts
Class Rating	125 or 150
Control Type	Lever Handle
CV Rating	5340 GPM
Disc Material	Ductile Iron
EAN	098268604740
Inlet Connection Size	10 IN
Inlet Connection Type	Lug
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	248
Maximum Working Pressure-PSI	200
Minimum Temperature-Fahrenheit	33
Operating Torque-Dry	4857 in-lbs
Operating Torque-Wet	2500 in-lbs
Outlet Connection Size	10 IN
Outlet Connection Type	Lug
Part Number	0525673
Seat Material	EPDM
Series	BF-03
Silicone Free	Yes
Stem Shaft Material	Stainless Steel
Valve Style	Lug

• Specification Sheet - BF-03-M2, BF-04-M2

UPC - 098268604740
