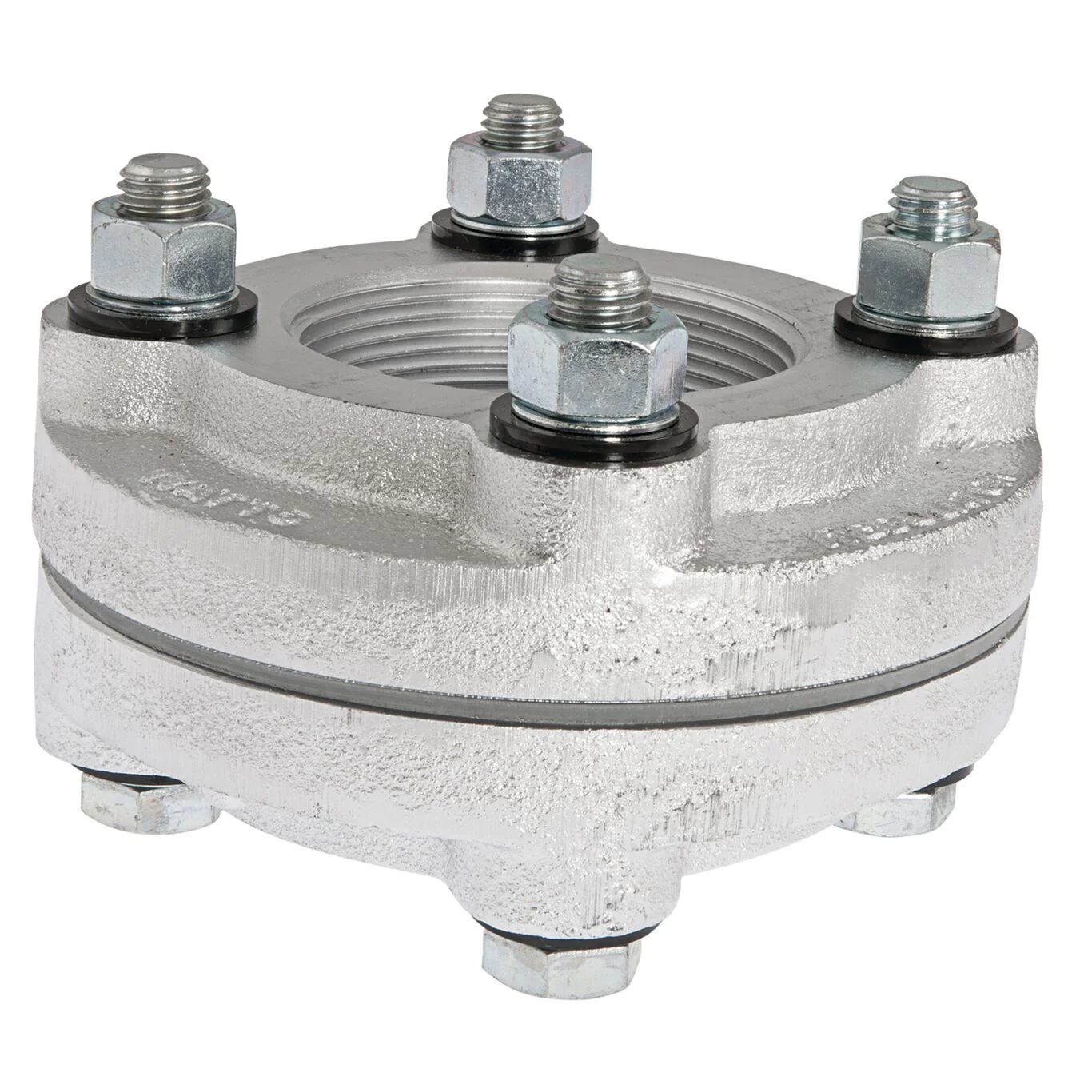

Watts A3200 2 1/2 - Part of the 3200 Series

This 2 1/2 inch dielectric flange pipe fitting is designed for commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current from connections of dissimilar metals. Ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of an iron pipe threaded flange tailpieces with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 degrees F (82 degrees C). The maximum pressure is rated at 175 psi (12.1 bar).

Features

• Buna-N gasket
• Maximum pressure is 175 psi (12.1 bar)
• Maximum temperature is 180 degrees F (82 degrees C)
• Iron pipe thread connections
• Designed and manufactured to the highest quality standards
• Meet federal specifications for tensile strength and thread end connections

Specifications
Adapter Material	Cast Iron
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
EAN	098268094312
Gasket Material	Buna-N
Gasket Maximum Pressure	175 PSI
Gasket Maximum Pressure-BAR	12.10
Gasket Maximum Temperature	180 Degree F
Inlet Connection Size	2 1/2 IN
Inlet Connection Size-Metric	64 MM
Inlet Connection Type	Female Threaded
Inlet Material	Cast Iron
Inlet Thread Type	NPT
Insulator Material	Polysulfone
Lead Free	NO
Maximum Working Pressure-PSI	175
Maximum Working Temperature-Fahrenheit	180
Nut Material	Steel
Outlet Connection Size	2 1/2 IN
Outlet Connection Type	Female Threaded
Outlet Material	Cast Iron
Outlet Thread Type	NPT
Part Number	0822420
Series	3200
Type	Kit

• Specification Sheet - 3200

UPC - 098268094312
