Watts A2C-SC 1/2 - Part of the A2C-SC Series

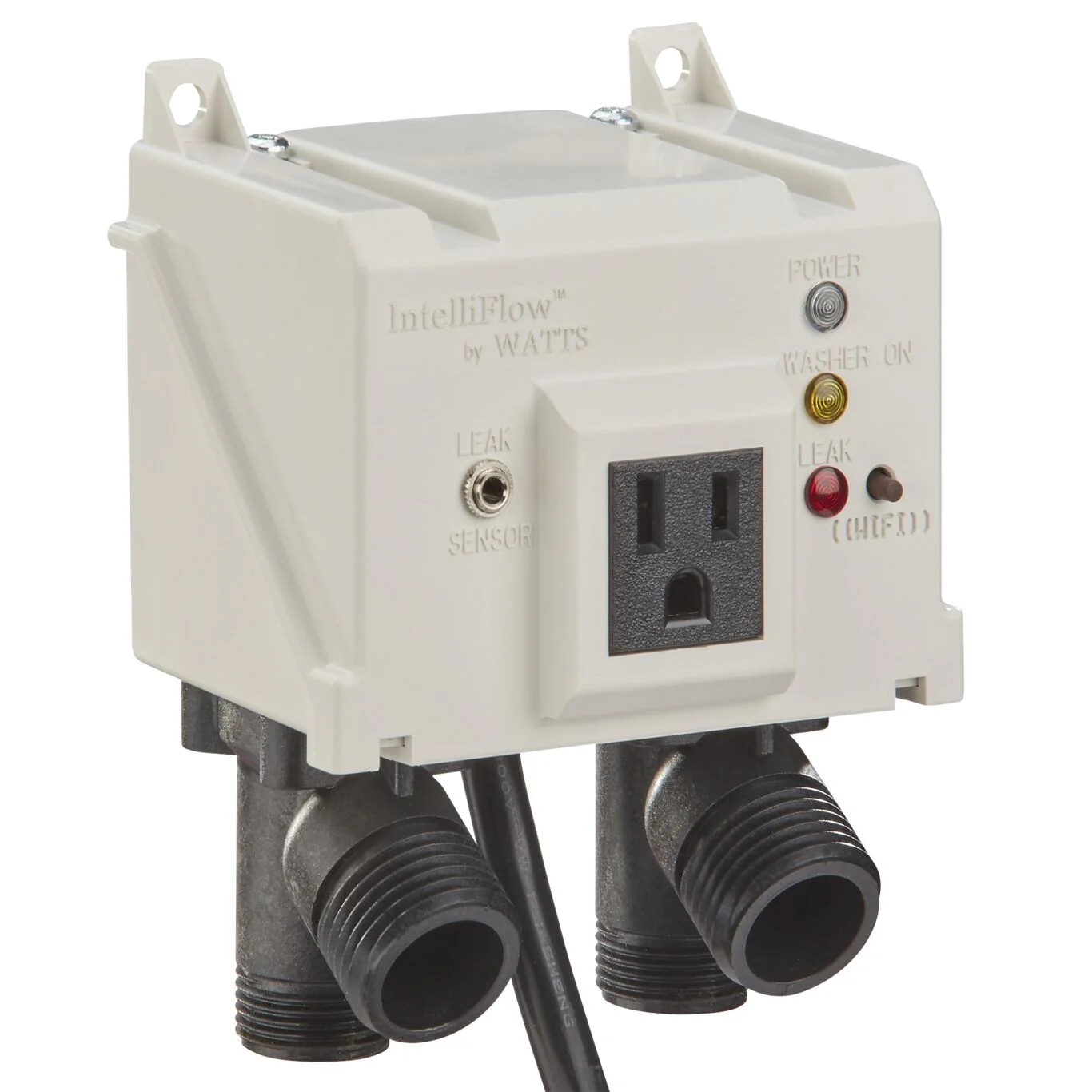

The A2C-SC IntelliFlow^® washing machine smart water shutoff senses the washing machine?s current flow and immediately shuts off the water supply if an inlet hose bursts. Simply scan the QR code on the IntelliFlow, follow the prompts to register it online, and connect it to the local WiFi network to enable real-time text and email alerts. The IntelliFlow valve only allows water to flow into the washing machine when electric current indicates the machine is in use, and automatically closes water inlet valves when a water leak is detected. Maximum pressure setting is 150 psi and maximum washing machine current rating is 15A. A burst washing machine hose can discharge 500 gallons of water in one hour, causing catastrophic damage to homes and businesses.

Features

• Automated flood detection with real-time text and email alerts
• Continuously monitors for the presence of water behind a washing machine
• Floor-mounted water leak sensor that automatically shuts off water supply to washer
• Optional A-2 IntelliTimer allows use with 220 VAC powered washing machine or combination washer/dryer

Specifications
Body Material	Polysulfone
Brand	Watts
Cold Water Inlet Connection Size	1/2 IN
Cold Water Inlet Connection Type	Socket
Cold Water Outlet Connection Type	Socket
Control Type	Electric Actuators
EAN	098268272970
Hot Water Inlet Connection Size	1/2 IN
Hot Water Inlet Connection Type	Socket
Hot Water Outlet Connection Type	Male Threaded
Lead Free	NO
Maximum Pressure-PSI	150
Maximum Temperature-Fahrenheit	180
Part Number	0004648
Series	A2C-SC

• Specification Sheet - A2C-SC, A2C-SC-WB IntelliFlow
• Specification Sheet - A2C-SC, A2C-SC-WB IntelliFlow (French)
• Specification Sheet - A2C-SC, A2C-SC-WB IntelliFlow (Spanish)

UPC - 098268272970
