Watts 994-DNRS 6 - Part of the 994 Series

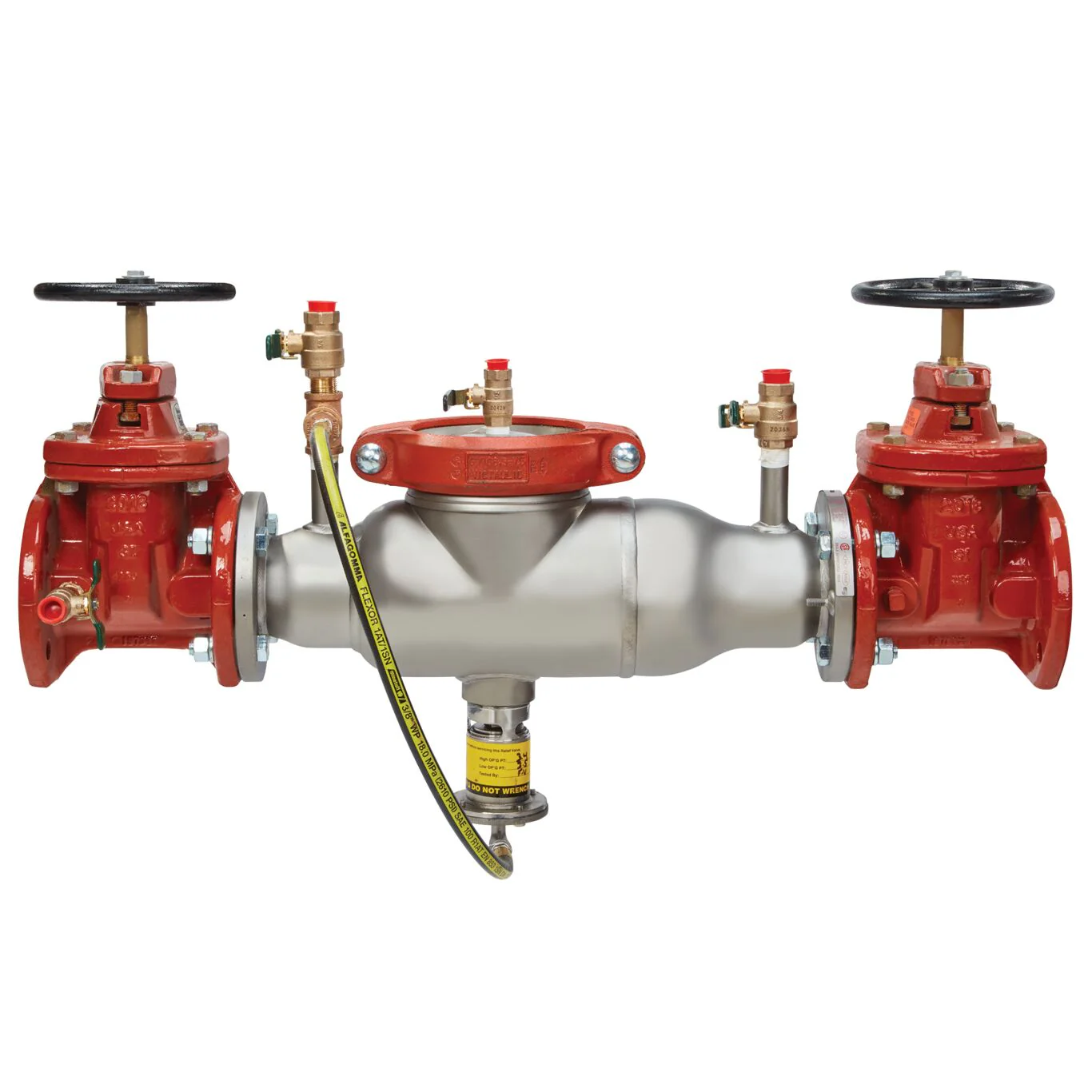

This 6 inch reduced pressure zone assembly backflow preventer helps prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of a short lay length lead free stainless steel body, test cocks, corrosive resistant stainless steel bottom mounted relief valve, torsion spring check valves, and domestic non-rising stem resilient seated gate valves.

Features

• Stainless steel body
• Domestic non-rising stem gate valves
• Health hazard application
• No special tools required for servicing
• Compact construction for smaller enclosures
• Bottom mounted relief valve reduces clearance requirements when installed against an outside wall
• Torsion spring check valves provides maximum flow at low pressure drop
• Short end to end dimensions makes retrofit easy
• Thermoplastic check valves with stainless steel hinge pins for trouble-free operation

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Reduced Pressure Zone Assembly
Body Finish	Stainless Steel
Body Material	Stainless Steel
Body Pattern	Does Not Apply To Product
Brand	Watts
Buy American Act Compliant	NO
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Rubber
EAN	098268345124
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	6 IN
Inlet Connection Size-Metric	150 MM
Inlet Connection Type	Flanged Joint
Inlet Shutoff Valve Type	Non Rising Stem Gate Valve
Inlet Thread Type	Does Not Apply To Product
Lead Free	Yes
Maximum Temperature-Fahrenheit	110
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	6 IN
Outlet Connection Type	Flanged Joint
Outlet Shutoff Valve Type	Non Rising Stem Gate Valve
Outlet Thread Type	Does Not Apply To Product
Part Number	0439403
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backpressure and Backsiphonage
Seat Material	Engineered Plastic
Series	994
Strainer	No
Technologies	Does Not Apply To Product
Tradename	None

• Specification Sheet - 994
• Specification Sheet - 994 (French)
• Specification Sheet - 994 (Spanish)
• Specification Sheet - Flood Sensor Connection Kit - Watts
• Specification Sheet - Flood Sensor Connection Kit - Watts (French)
• Specification Sheet - Flood Sensor Connection Kit - Watts (Spanish)

UPC - 098268345124
