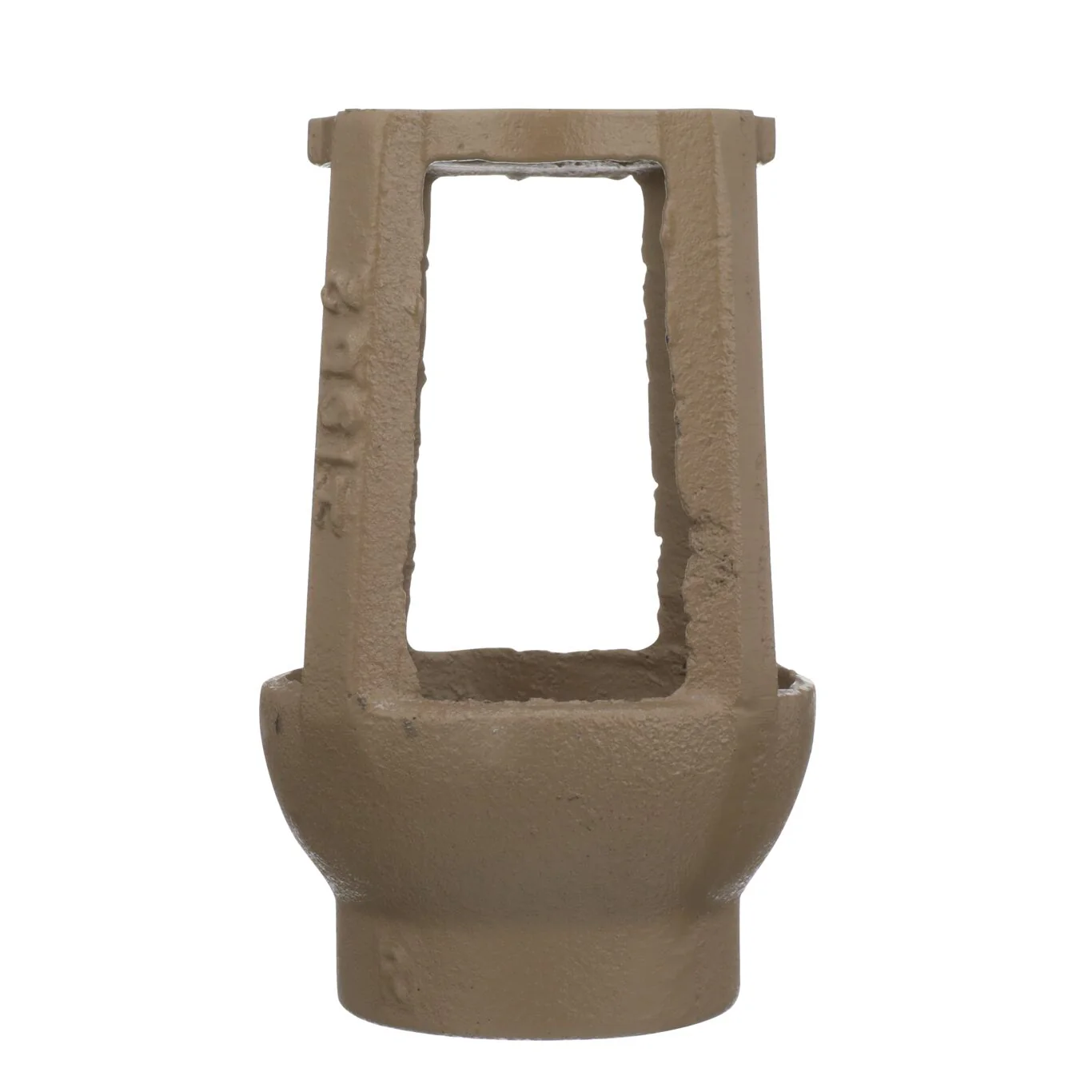

Watts 909AGF - Part of the Air Gaps Series

This air gaps for reduced pressure zone assembly, 1 1/4 to 3 IN series 009 and 909, 1 1/4 to 2 IN series 009M1, and 2 IN 009M2, provide an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

Features

• Use with 1 1/4 to 3 IN 009/909, 1 1/4 to 2 IN 009M1, and 2 IN 009M2 series
• For nuisance RV discharge
• Epoxy coated
• For vertical or horizontal installation

Specifications
Body Material	Cast Iron
Brand	Watts
Buy American Act Compliant	NO
EAN	098268104967
Lead Free	Not In Scope
Outlet Connection Size	2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0881378
Series	Air Gaps
Valve Size	1 1/4 to 3 IN

• Specification Sheet - Watts Air Gaps, Elbows and Test Cocks

UPC - 098268104967
