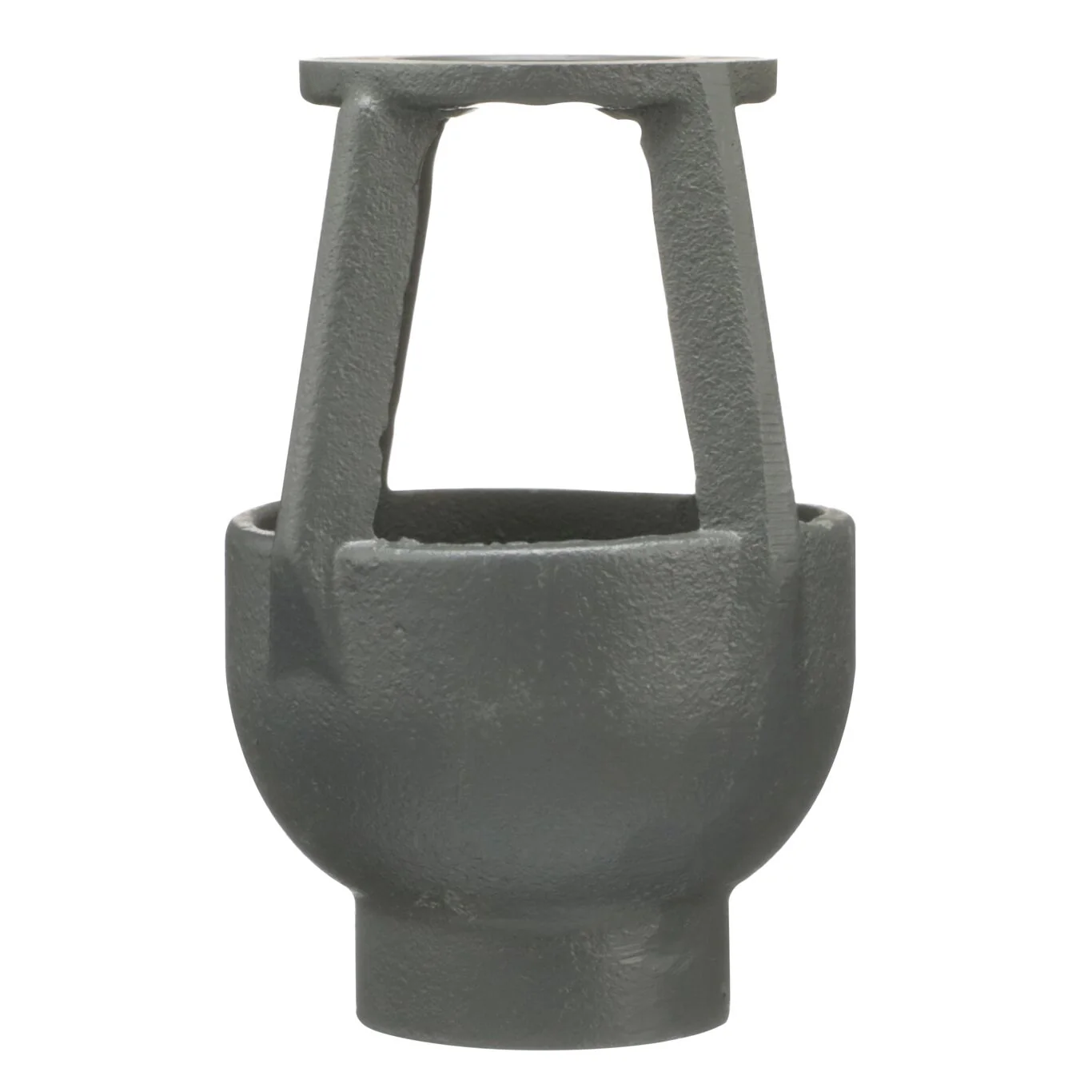

Watts 909AGC - Part of the Air Gaps Series

This air gap for reduced pressure zone assembly, 3/4 to 1 IN series 009 and 909, 1 to 1 1/2 IN series 009M2, and 1 1/4 to 2 IN series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

Features

• Uese with 3/4 to 1 IN 009/909, 1 to 1 1/2 IN 009M2, and 1 1/4 to 2 IN 995 Series
• Hardware for installation included
• Diverts nuisance discharge
• Metal construction
• Durable coating

Specifications
Body Material	Cast Iron
Brand	Watts
Buy American Act Compliant	NO
EAN	098268104950
Lead Free	Not In Scope
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0881376
Series	Air Gaps
Valve Size	3/4 to 1 1/4 IN

• Specification Sheet - Watts Air Gaps, Elbows and Test Cocks

UPC - 098268104950
