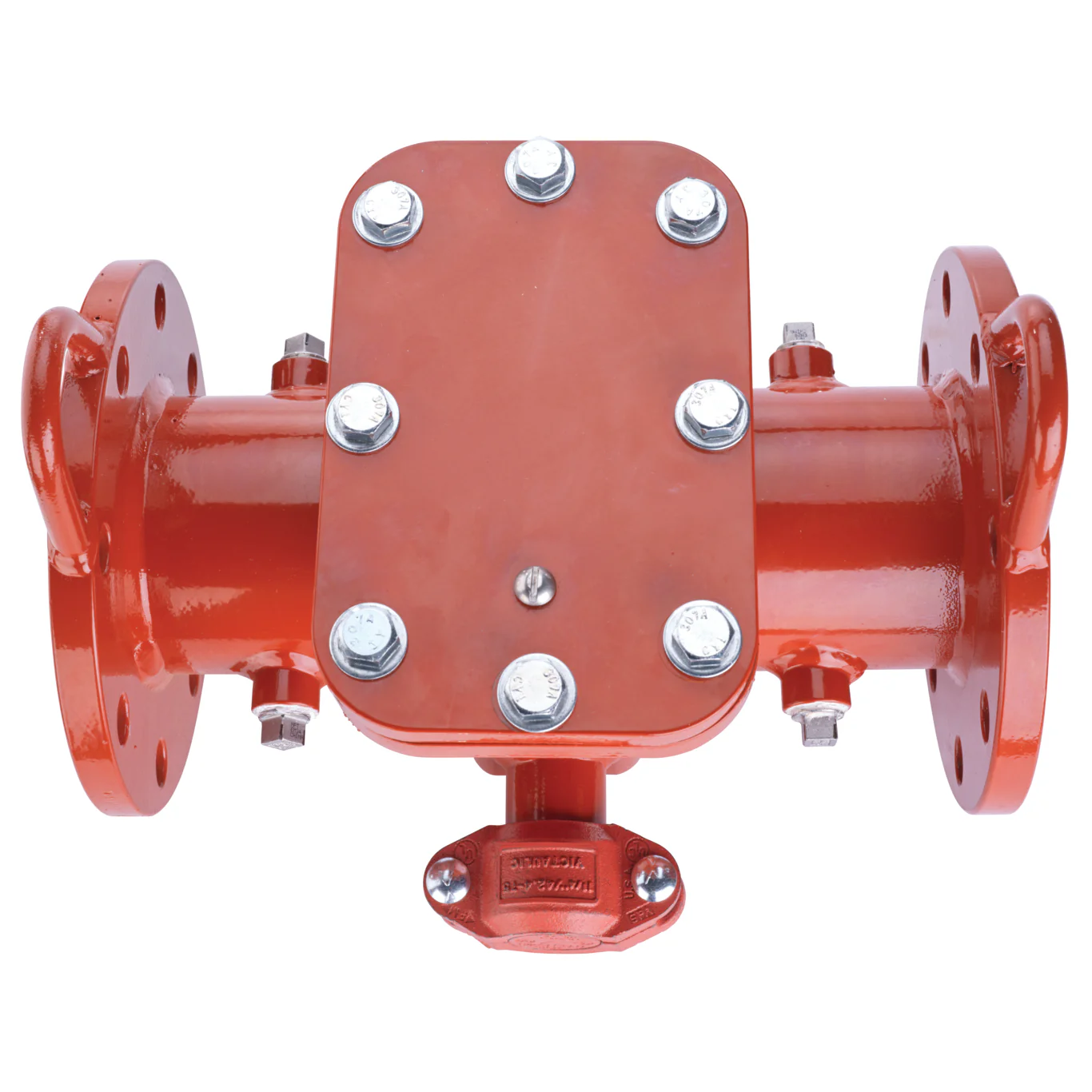

Watts 843H 4 - Part of the 843H Series

This 4 inch 150# flanged fabricated carbon steel plate strainer is used to filter undesirable particulate from pipelines, thereby protecting other equipment downstream. The 843H plate strainer is ideal for preventing debris and particle build up in Watts Automatic Control Valves. This strainer comes with a stainless steel 10 mesh screen. Plate style strainers promote ease of maintenance, requiring only cover removal for servicing. The 843H plate strainer is armed with ArmorTek^®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.

Features

• Designed for low pressure drop applications
• Grooved clean out ports located on both sides for ease of maintenance
• Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
• Optional accessories include manual differential pressure gauge, or ACV Assure pressure monitoring system

Specifications
ArmorTek Technology	Yes
Body Material	Carbon Steel
Brand	WATTSPH
EAN	098268599541
Flange Material	Carbon Steel
Inlet Connection Size	4 IN
Inlet Connection Type	Flanged Joint
Lead Free	YES
Maximum Pressure-PSI	250
Outlet Connection Size	4 IN
Outlet Connection Type	Flanged Joint
Part Number	0690100
Screen Material	Stainless Steel
Series	843H
Strainer Type	Plate

• Specification Sheet - Plate Strainers - 843H
• Specification Sheet - Plate Strainers - 843H (French)
• Specification Sheet - Plate Strainers - 843H (Spanish)

UPC - 098268599541
