Watts 77F-SS 4 - Part of the 77F-SS Series

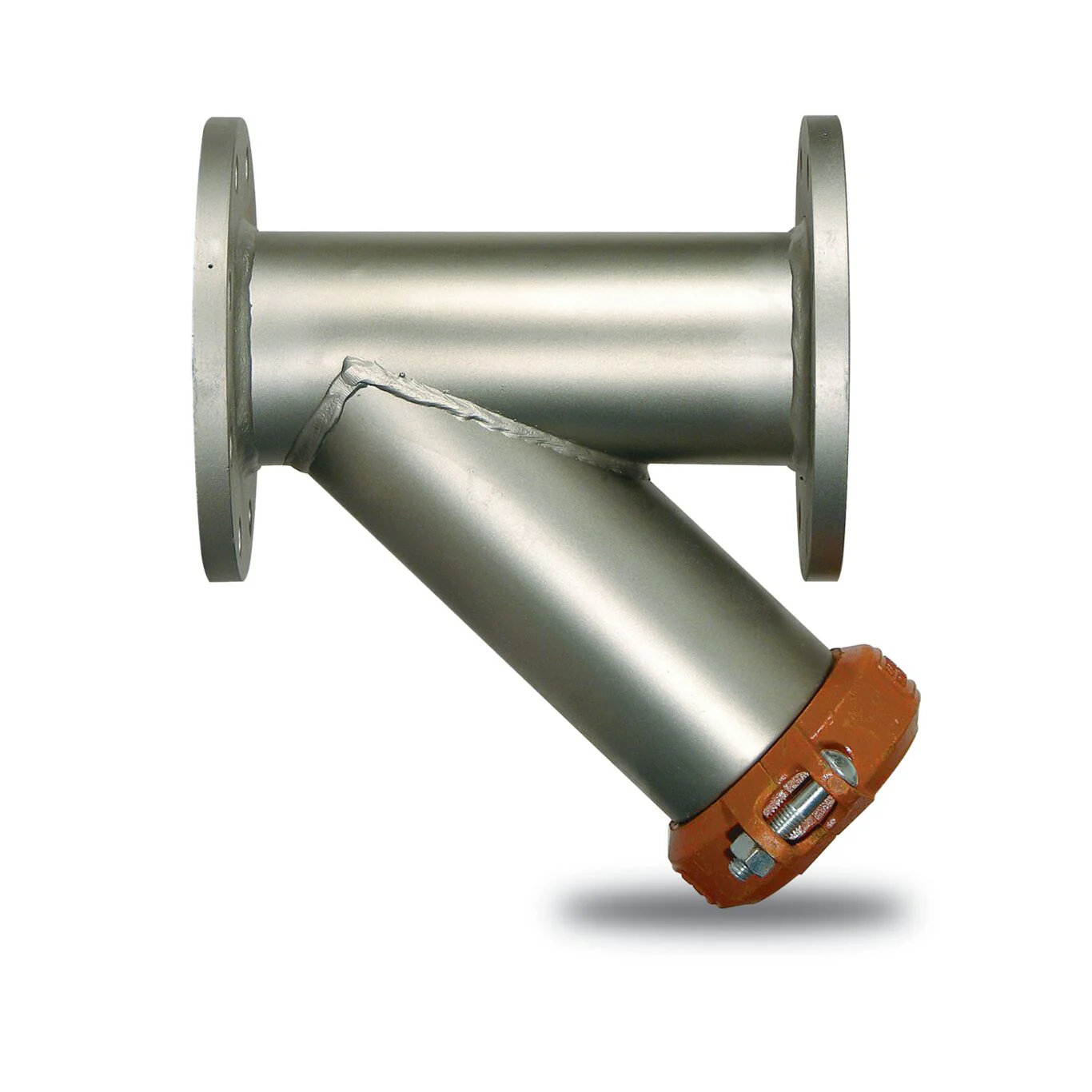

This stainless steel flanged wye pattern strainer, 4 inch Watts Model 77F-SS, is a lightweight fabricated strainer designed to remove dirt and other debris from fluid systems. A simple cover and coupling design permits easy cleaning or replacement of the screen.

Features

• Wye pattern
• Stainless steel body
• 304 stainless steel screen
• Flanged

Specifications
Blowdown Outlet Connection	Flanged Joint
Blowdown Outlet Size	1/2 IN
Body Material	Stainless Steel
Body Pattern	Wye
Bolt Material	Steel
Brand	Watts
Buy American Act Compliant	NO
Class Rating	150
EAN	098268802184
Epoxy Coating Type	None
Flange Material	Carbon Steel
Gasket Material	EPDM
Grooved Coupling Material	Does Not Apply To Product
Inlet Connection Size	4 IN
Inlet Connection Size-Metric	100 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Operating Temperature-Celsius	66.00
Maximum Operating Temperature-Fahrenheit	150
Maximum Pressure And Temperature	200 PSI at 150 degree F
Maximum Pressure-BAR	13.80
Maximum Pressure-PSI	200
Maximum Working Pressure And Temperature	200 PSI at 150 degree F
Outlet Connection Size	4 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	0821112
Plug Material	Brass
Pressure-Temperature Rating	200 PSI at 150 degree F
Pressure-Temperature Rating-BAR	13.8 BAR at 66 degree C
Retainer Cover Material	Ductile Iron
Retainer Cover Type	Tapped with Closure Plug
Screen Material	Stainless Steel
Screen Size	ONE_SIXTEENTH
Series	77F-SS
Strainer Type	Wye
WOG Rating	200 PSI

• Specification Sheet - 77F-SS, 77G-SS

UPC - 098268802184
