Watts 77F-DI-125 10 - Part of the 77F-DI-125 Series

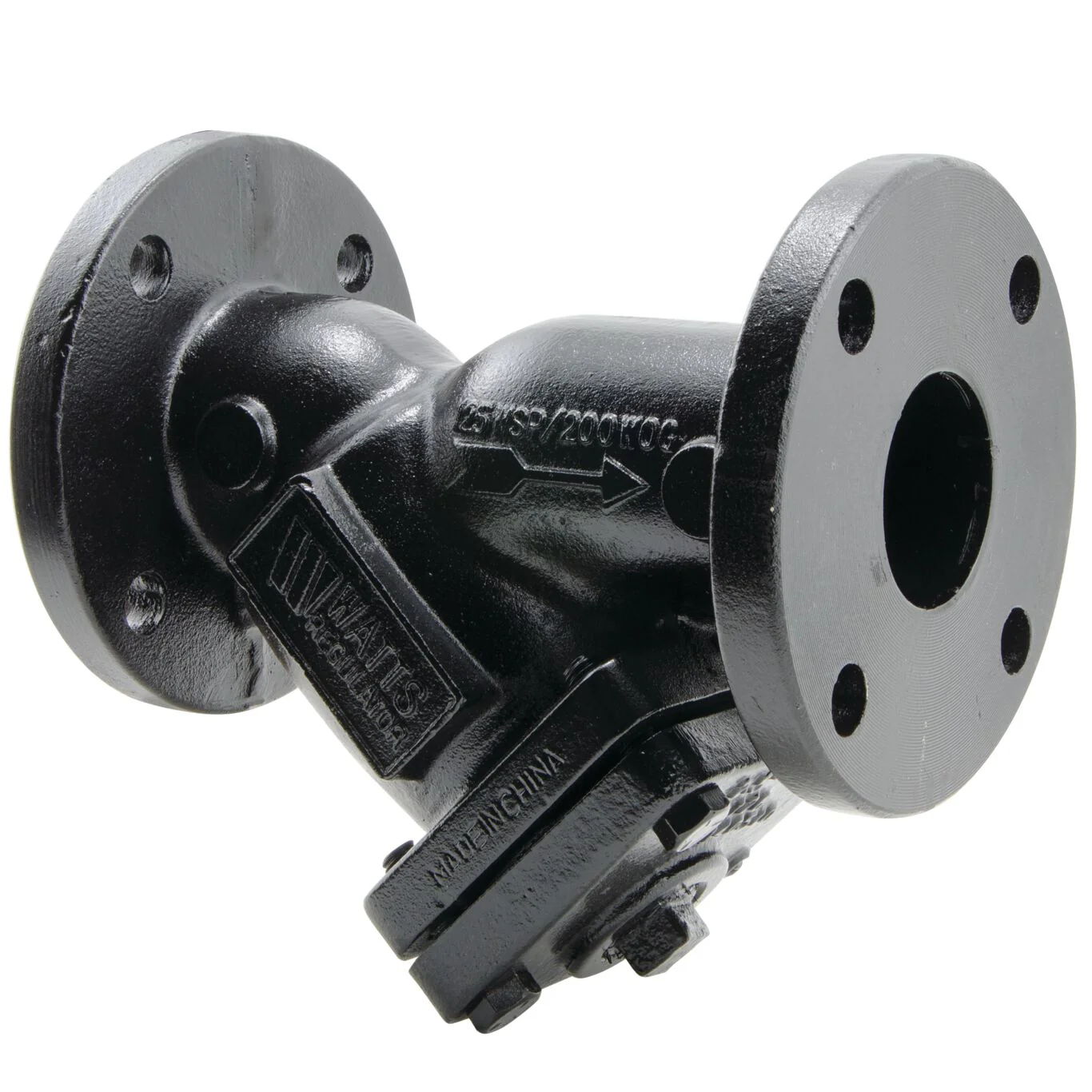

This cast iron flanged wye pattern strainer 10 inch Watts model 77F-DI-125, has lead free class B cast iron body with 3/16 inch perforated screen, class 125 flanged connections, cast iron blowdown plug, stainless steel perforated screen, bolted and tapped iron retainer cap with graphite gasket and drain/blowoff connection furnished with a closure plug. Applicable for liquid and steam service to protect check valves, backflow preventers and similar controls from foreign matter. Maximum Pressure (non-shock) 200 psi (13.8 bar) at 210 degree F (99 degree C) WOG, 125 psi (8.6 bar) at 353 degree F (178 degree C) WSP.

Features

• Wye pattern
• Cast iron body
• 304 stainless steel perforated screens
• Flanged

Specifications
Blowdown Outlet Connection	Flanged Joint
Blowdown Outlet Size	2 IN
Body Material	Cast Iron
Body Pattern	Wye
Bolt Material	Steel
Brand	Watts
Buy American Act Compliant	NO
Class Rating	125
EAN	098268051810
Epoxy Coating Type	None
Flange Material	Cast Iron
Gasket Material	Graphite
Inlet Connection Size	10 IN
Inlet Connection Size-Metric	250 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Outlet Connection Size	10 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	0825207
Plug Material	Iron
Retainer Cover Material	Cast Iron
Retainer Cover Type	Tapped with Closure Plug
Screen Material	Stainless Steel
Screen Size	THREE_SIXTY_FOURTHS
Series	77F-DI-125
Strainer Type	Wye
WOG Rating	200 PSI

• Specification Sheet - 77F-DI-125, 77F-DI-FDA-125

UPC - 098268051810
