Watts 77F-CSSI 4 - Part of the 77F-CSSI Series

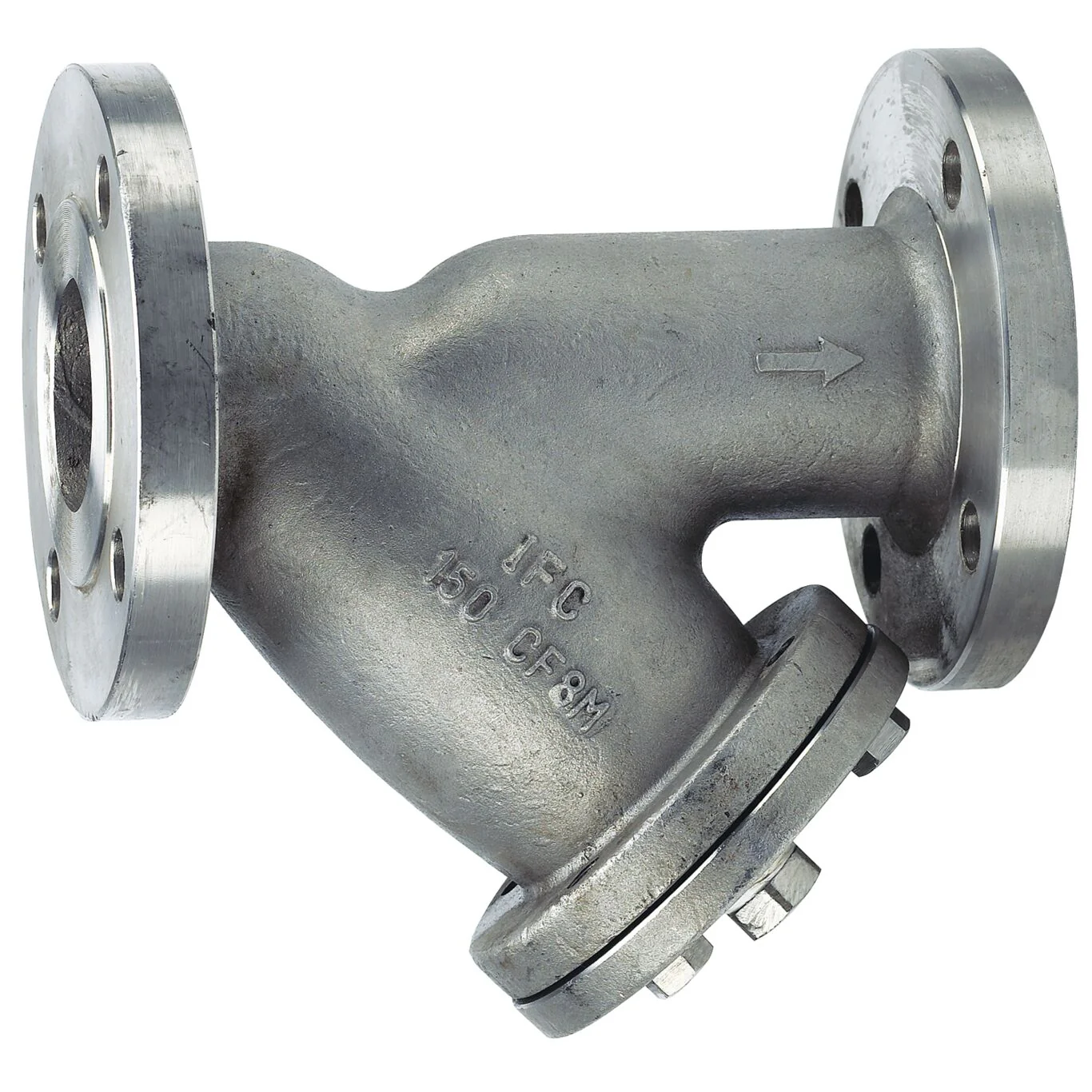

This stainless steel flanged wye pattern strainer, 4 inch Watts Model 77F-CSSI, is used in liquid and steam applications. The strainer is furnished with blow-off connections and a machined seat that allows the screen to be self aligning and assures a perfect fit. It comes complete with a bolted screen retainer cover and non asbestos gasket. The screen retainer is tapped for strainer clean out by removing the blow off plug or opening a blow off valve piped to the blow-off outlet.

Features

• Wye pattern
• Stainless steel body
• Self aligning stainless steel screen
• Flanged

Specifications
Blowdown Outlet Connection	Flanged Joint
Blowdown Outlet Size	1 1/2 IN
Body Material	Cast Stainless Steel
Body Pattern	Wye
Brand	Watts
Buy American Act Compliant	NO
EAN	098268881349
Flange Material	Stainless Steel
Gasket Material	PTFE
Inlet Connection Size	4 IN
Inlet Connection Size-Metric	100 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Outlet Connection Size	4 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	0823096
Plug Material	Stainless Steel
Retainer Cover Material	Stainless Steel
Retainer Cover Type	Tapped with Closure Plug
Screen Material	Stainless Steel
Screen Size	ONE_EIGHTH
Series	77F-CSSI
Strainer Type	Wye
WOG Rating	275 PSI

• Specification Sheet - 77F-CSSI

UPC - 098268881349
