Watts 77F-CSI 1 1/2 - Part of the 77F-CSI Series

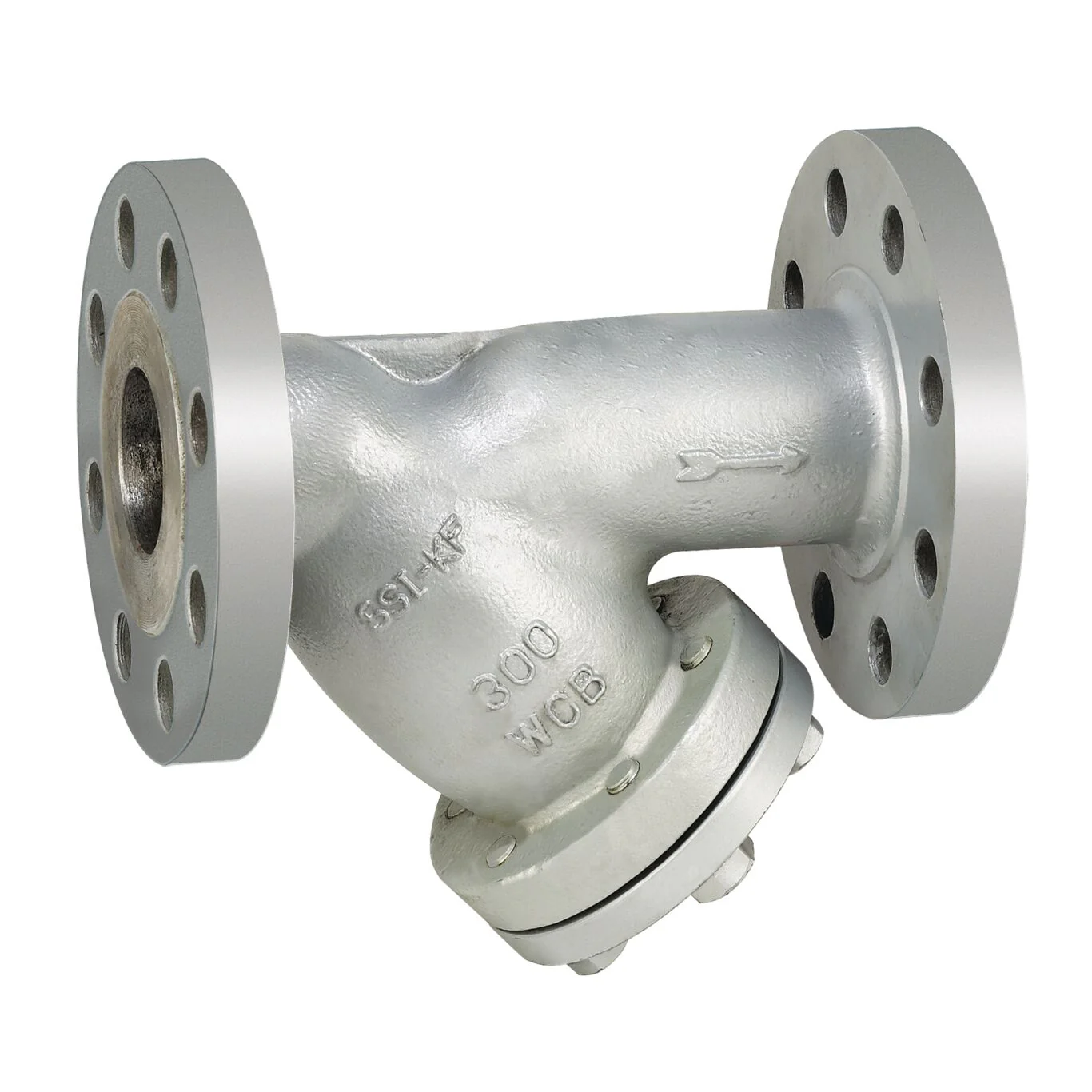

This steel flanged wye pattern strainer, 1 1/2 inch Watts Model 77F-CSI, is used in liquid and steam applications. The Strainer is furnished with blow off connections and machined seat that allows the screen to be self aligning and assures a perfect fit. The Strainer comes with a bolted screen retainer cover and non-asbestos gasket. The screen retainer cover is tapped for strainers clean out by removing the blow off plug or opening a blow off valve piped to the blow off outlet.

Features

• Wye pattern
• Steel body
• 304 stainless steel screen
• Flanged connections

Specifications
Blowdown Outlet Connection	Flanged Joint
Blowdown Outlet Size	1/2 IN
Body Material	Steel
Body Pattern	Wye
Brand	Watts
Buy American Act Compliant	NO
EAN	098268879513
Flange Material	Steel
Gasket Material	PTFE
Inlet Connection Size	1 1/2 IN
Inlet Connection Size-Metric	40 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Outlet Connection Size	1 1/2 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	0823019
Plug Material	Carbon Steel
Retainer Cover Material	Cast Steel
Retainer Cover Type	Tapped with Closure Plug
Screen Material	Stainless Steel
Screen Size	ONE_THIRTY_SECOND
Series	77F-CSI
Strainer Type	Wye
WOG Rating	285 PSI

• Specification Sheet - 77F-CSI

UPC - 098268879513
