Watts 405-RW 8 - Part of the 405-NRS-RW Series

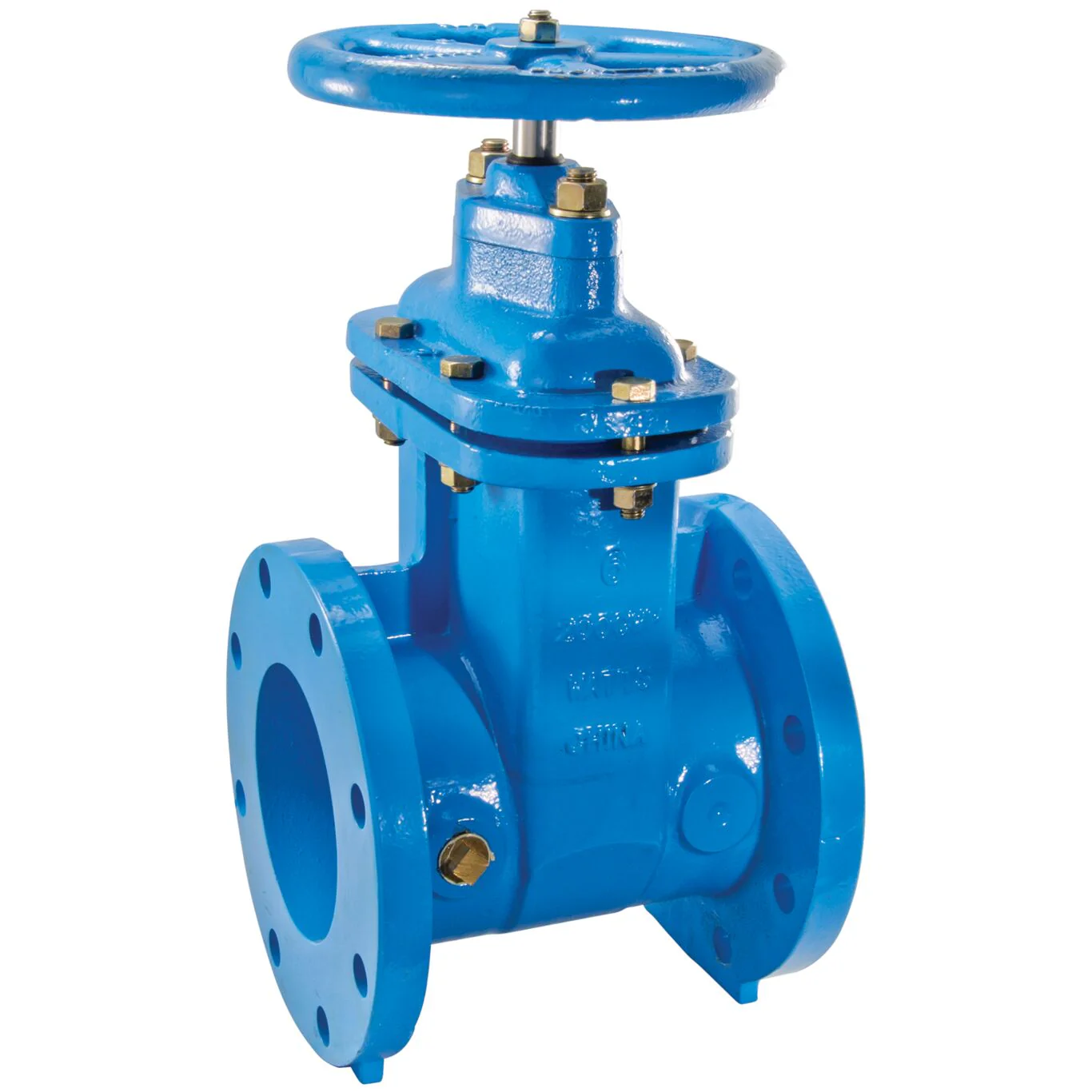

The 8 inch non-rising stem resilient wedge flanged gate valve is designed for use in irrigation and water distribution services. It features an epoxy coated cast iron body with ANSI B16.1 flanged connections, resilient wedge disc, cast iron bonnet, bronze non-rising stem and is operated by a cast iron handwheel. The resilient wedge disc design offers both positive seating and resistance against high differential pressure. The maximum pressure rating is 200 psi (13.8 bar) CWP.

Features

• Epoxy coated cast iron body
• Non-rising stem
• Flanged connections
• Easy in-line service

Specifications
Body Material	Cast Iron
Body Pattern	Straight
Bonnet Type	Flanged
Brand	Watts
Buy American Act Compliant	NO
Class Rating	125
Control Type	Cross Handwheel
EAN	098268087154
Epoxy Coating Type	Standard
Inlet Connection Size	8 IN
Inlet Connection Size-Metric	200 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Pressure-PSI	200
Maximum Temperature-Fahrenheit	140
Outlet Connection Size	8 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	0700107
Series	405-NRS-RW
Stem Shaft Material	Stainless Steel
Stem Type	Non Rising
Valve Style	NRS
WOG Rating	200 PSI

• Specification Sheet - 405-NRS-RW

UPC - 098268087154
