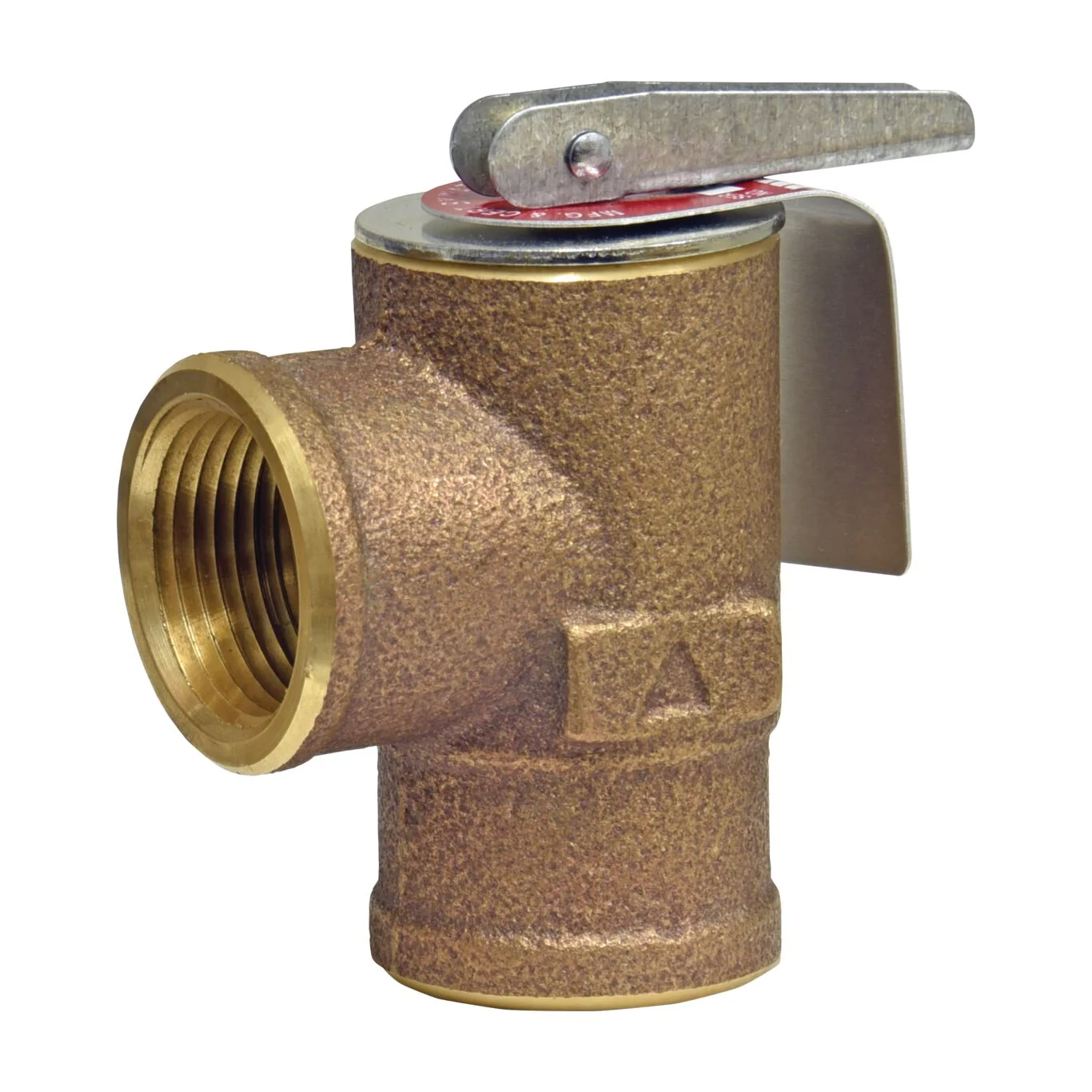

Watts 335M2-030 3/4 - Part of the 335 Series

This 3/4 inch pressure safety relief valve is used in commercial and industrial applications for low pressure, steam heating boilers and process equipment. It consists of a bronze body construction with NPT threaded female inlet and threaded female outlet (drain) connection, stainless steel spring, a top-guided stem, and a non-stick Teflon^® disc-to-metal seating. The pressure relief is set at 30 psi (2.1 bar).

Features

• High heat resisting silicone disc
• Positive shut off
• ASME Section IV at 30 psi set point
• Seat located above drain

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	NO
EAN	098268784190
GPM-When Relieved	Does Not Apply to Product
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	Not In Scope
Maximum Temperature-Fahrenheit	250
Maximum Working Pressure-PSI	20
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0342691
Pressure Range	Does Not Apply to Product
Pressure Relief Setting-PSI	30
Pressure Steam Discharge Capacity	510,000 BTU per hour
Protection Type	Pressure
Series	335
Shank Length	Does Not Apply To Product
Temperature Steam Discharge Capacity	Does Not Apply to Product
Thermostat Material	Does Not Apply To Product
Thermostat Probe Length	Does Not Apply To Product

• Specification Sheet - 335

UPC - 098268784190
