Watts 252AT 30-140 3/4 - Part of the 252A Series

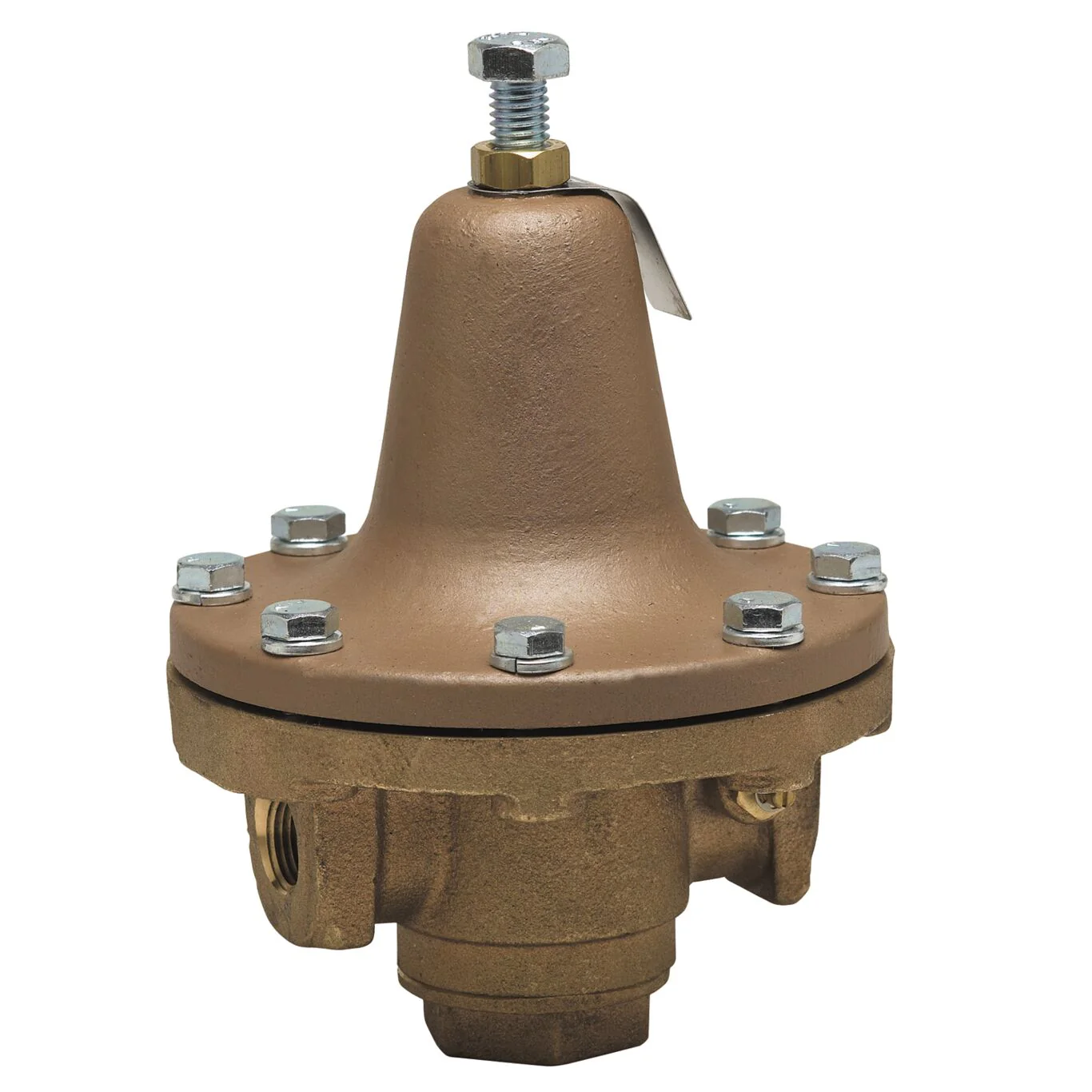

This 3/4 inch process steam pressure regulator, model 252AT 30-140, is designed to offer highly sensitive response to reduced pressure changes and maintain fullest possible volume without appreciable reduced pressure drop. This regulator is ideal for use on applications such as oil lines, testing fixtures, autoclaves, steam tables, steam irons, single radiators, volcanizes, sterilizers and process lines. For 30-140 psi.

Features

• Bronze body construction
• Stainless steel disc
• Designed to offer highly sensitive response to reduced pressure changes
• Maintains fullest possible volume without appreciable reduced pressure drop

Specifications
Adjustable Reduced Pressure Range	30 to 140
Body Material	Bronze
Brand	Watts
Gauge Option	No Gauge
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Lead Free	NO
Maximum Operating Temperature-Celsius	204.00
Maximum Operating Temperature-Fahrenheit	400
Maximum Working Pressure-BAR	14.00
Maximum Working Pressure-PSI	200
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Standard Reduced Pressure Setting-BAR	3.40
Standard Reduced Pressure Setting-PSI	50
Valve Style	Standard

• Specification Sheet - 252A

UPC - 098268103038
