Watts 252A 10-50 1/2 - Part of the 252A Series

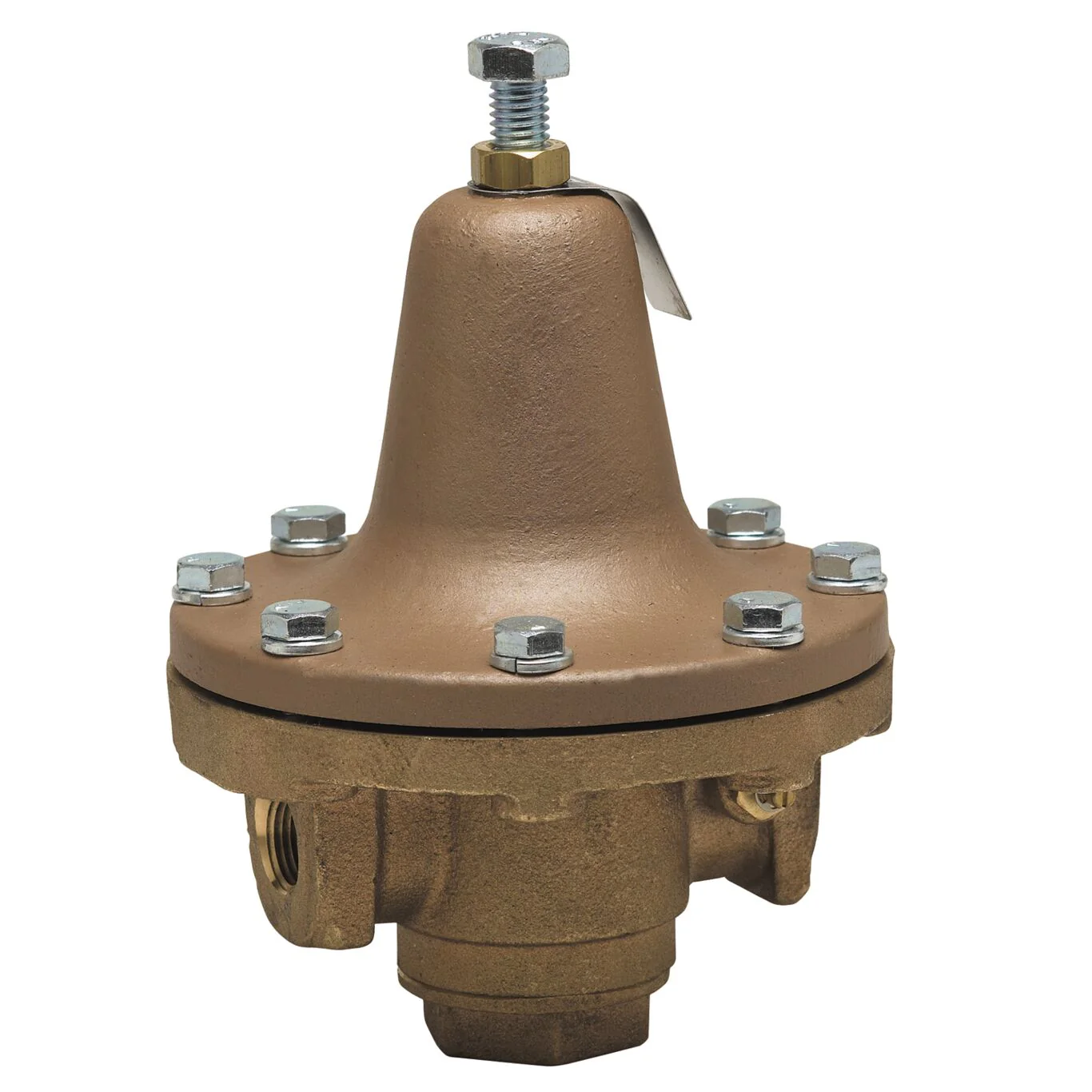

This 1/2 inch process steam pressure regulator, model 252A 10-50, is designed to offer highly sensitive response to reduced pressure changes and maintain fullest possible volume without appreciable reduced pressure drop. This regulator is ideal for use on applications such as oil lines, testing fixtures, autoclaves, steam tables, steam irons, single radiators, volcanizes, sterilizers and process lines. For 10-50 psi.

Features

• Bronze body
• Stainless steel disc
• NPT threaded female inlet and outlet connections
• Serviceable in line

Specifications
Adjustable Reduced Pressure Range	10 to 50
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	YES
Gauge Option	No Gauge
Inlet Connection Size	1/2 IN
Inlet Connection Type	Female Threaded
Lead Free	NO
Maximum Operating Temperature-Celsius	149.00
Maximum Operating Temperature-Fahrenheit	300
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Standard Reduced Pressure Setting-BAR	3.40
Standard Reduced Pressure Setting-PSI	50
Valve Style	Standard

• Specification Sheet - 252A

UPC - 098268102765
