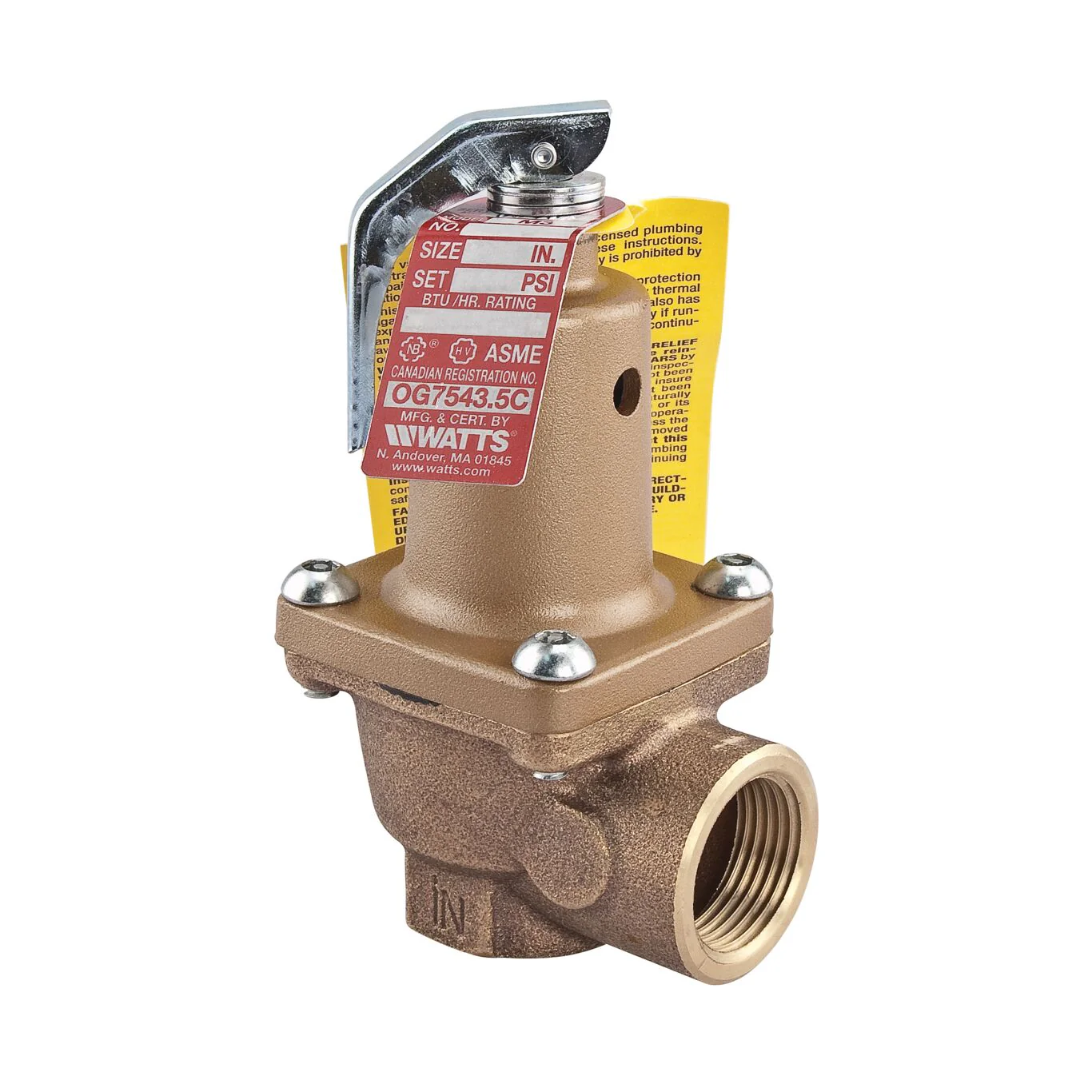

Watts 174A-125 2 - Part of the 174A Series

This 2 inch boiler pressure relief valve is used in hot water heating and domestic supply boiler applications to protect against excessive pressures on all types of hot water heating supply boiler equipment. It consists of a bronze body construction with NPT threaded female inlet and NPT threaded female outlet (drain) connections, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure relief is set at 125 psi (861.8 kPa) with corresponding high pressure ratings up to 12,170,000 BTU/hr.

Features

• Spring loaded
• Soft seated
• Bronze body
• Automatic reseating

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	YES
EAN	098268014402
Inlet Connection Size	2 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Working Pressure-PSI	94
Outlet Connection Size	2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0278480
Pressure Range	30 to 150 PSI
Pressure Relief Setting-PSI	125
Series	174A

• Specification Sheet - 174A, 374, 740
• Specification Sheet - 174A, 374, 740 (French)
• Specification Sheet - 174A, 374, 740 (Spanish)
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (French)
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (Spanish)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (French)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (Spanish)

UPC - 098268014402
