Watts 152SS-30-140 3/4 - Part of the 152SS Series

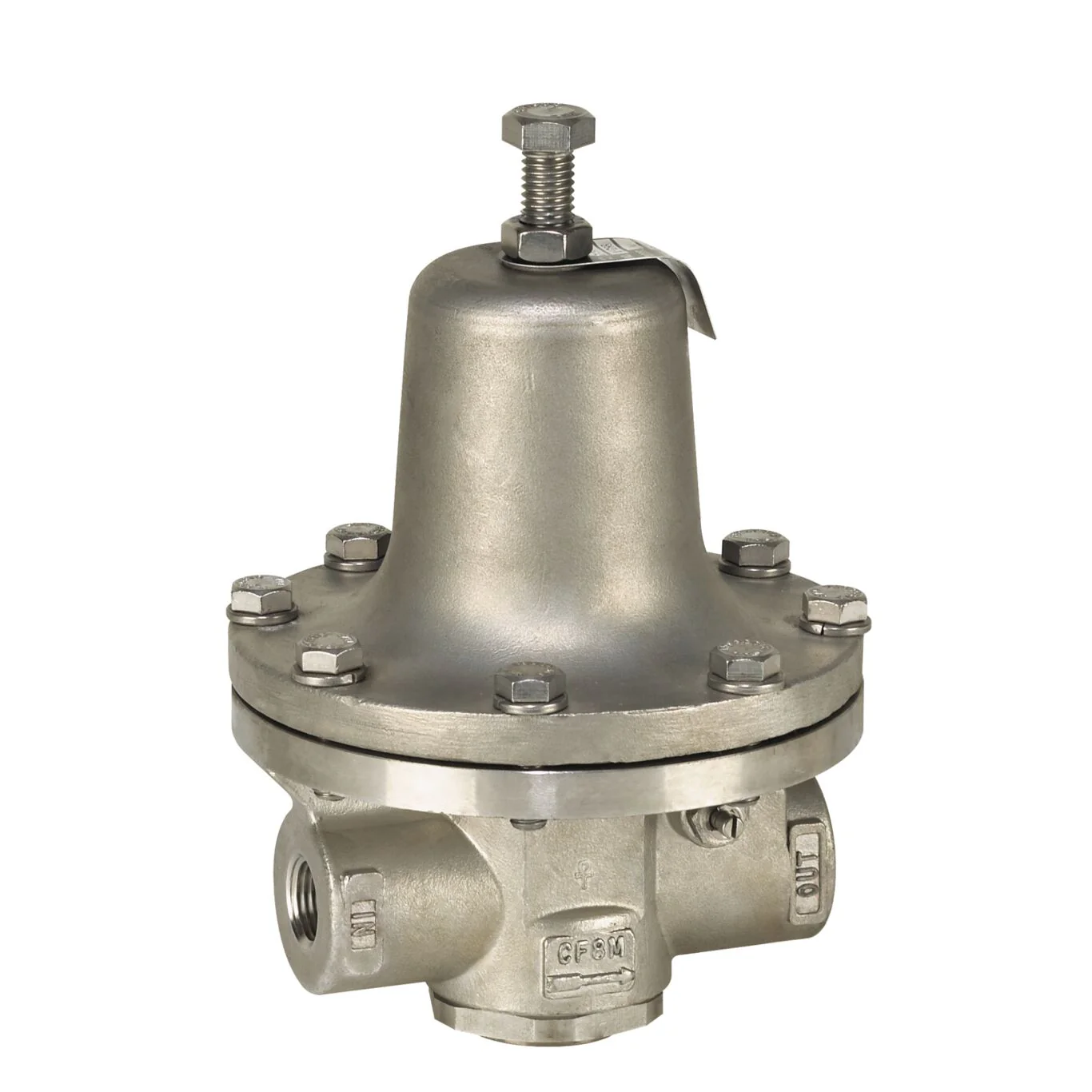

This 3/4 inch stainless steel process steam pressure regulator is designed to offer a highly sensitive response to reduce pressure changes and maintains the fullest possible volume without appreciable reduced pressure drop. It is used successfully on applications such as oil lines, testing fixtures, autoclaves, steam tables, steam irons, single radiators, vulcanizers, sterilizers, and process lines. This valve consists of a stainless steel body construction with NPT threaded female inlet and outlet connections, stainless steel strainer, stainless steel seat, stainless steel diaphragm, PTFE disc, and sensitivity adjustment feature for critical flow with a reduced pressure range of 30 to 140 psi.

Features

• Stainless steel body
• Sensitivity adjustment
• NPT threaded female inlet and outlet connections
• In-line serviceability

Specifications
Adjustable Reduced Pressure Range	30 to 140
Body Material	Stainless Steel
Brand	Watts
Gauge Option	No Gauge
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Lead Free	Not In Scope
Maximum Operating Temperature-Celsius	216.00
Maximum Operating Temperature-Fahrenheit	420
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Type	Kit
Valve Style	Standard

• Specification Sheet - 152SS

UPC - 098268234831
