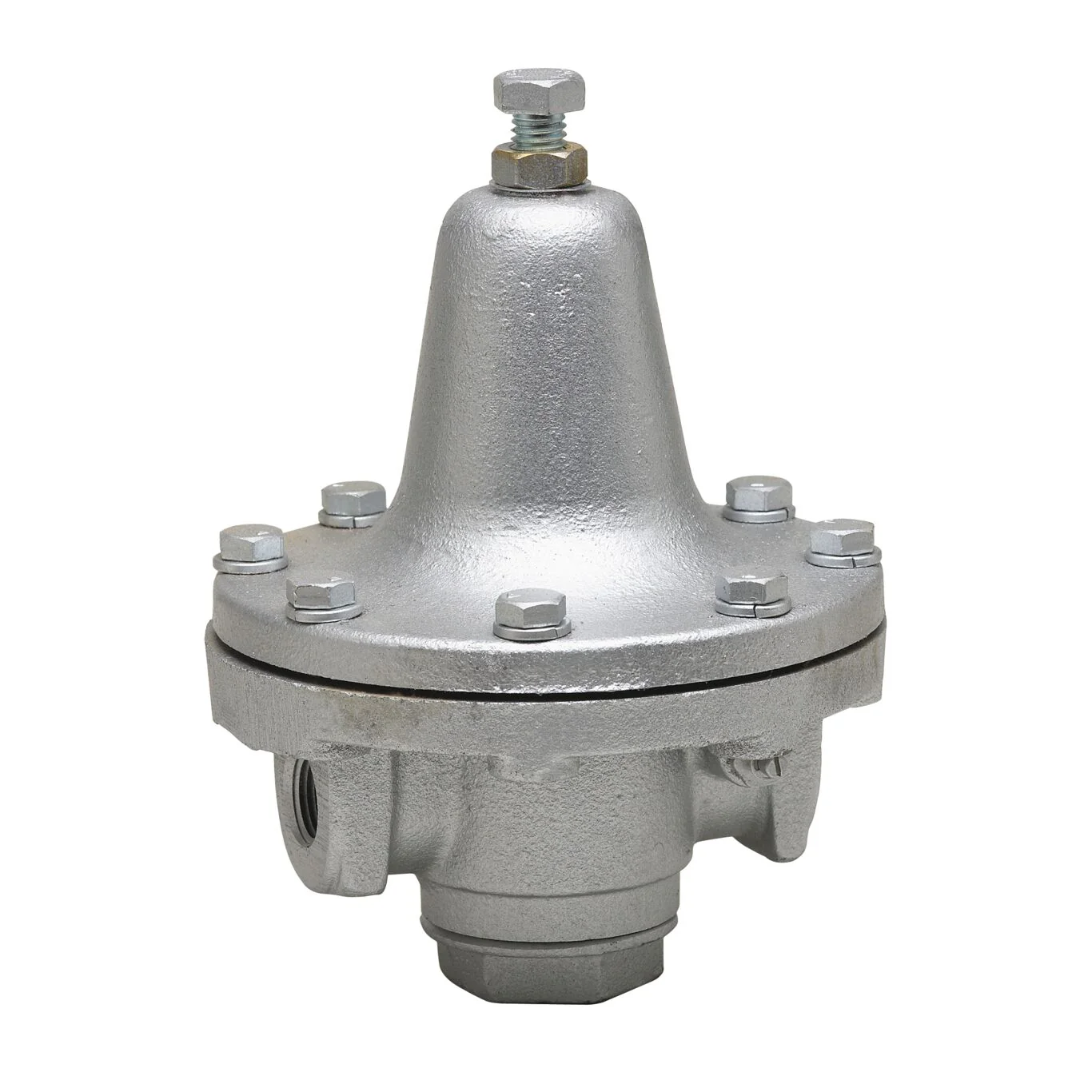

Watts 152AT-30140 3/4 - Part of the 152A Series

A process steam pressure regulator, series 152A, is designed to offer highly sensitive response to reduced pressure changes and maintain fullest possible volume without appreciable reduced pressure drop. This 3/4 inch regulator is ideal for use on applications such as oil lines, testing fixtures, autoclaves, steam tables, steam irons, single radiators, vulcanizers, sterilizers and process lines. It features a sensitivity adjuster to eliminate any vibrating condition that may arise from critical flow requirements. The adjustable reduced pressure range is 30 to 40 psi. The maximum operating temperature is 300 F (204 C) at 300 psi (21 bar) or 400 F (204 C) at 200 psi (14 bar).

Features

• Serviceable in-line
• Reduced pressure range 30 to 140 psi
• Iron body construction
• Maximum operating temperature is 300 F (204 C) at 300 psi (21 bar) or 400 F (204 C) at 200 psi (14 bar)

Specifications
Adjustable Reduced Pressure Range	30 to 140
Body Material	Iron
Brand	Watts
Gauge Option	No Gauge
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Lead Free	NO
Maximum Operating Temperature-Celsius	149.00
Maximum Operating Temperature-Fahrenheit	300
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Type	Kit
Valve Style	Standard

• Specification Sheet - 152A

UPC - 098268096361
