Watts 100XL-8-125210 - Part of the 100XL Series

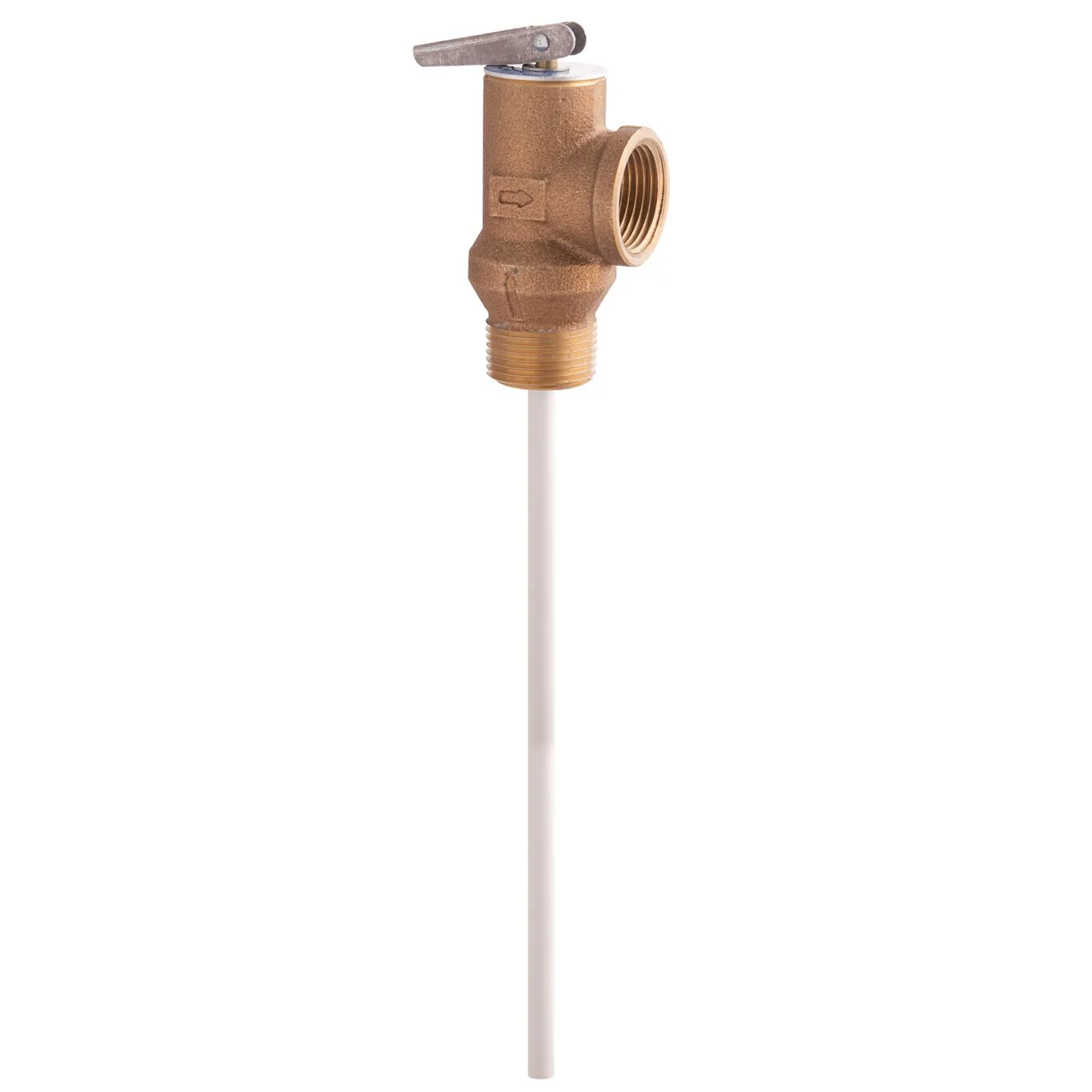

This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, 8 inch extension thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 125 psi (8.8 bar)

Features

• Unique thermostat with special thermo-bonded coating
• Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. Series
• Temperature and pressure relief valve to protect the heater from excessive pressure and temperature
• thermostat is accurate and proven

Specifications
Body Material	Brass
Brand	Watts
EAN	098268007220
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	125
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0066109
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	125
Protection Type	Temperature And Pressure
Series	100XL
Shank Length	1 1/8 IN
Temperature Relief-Fahrenheit	210
Thermostat Probe Length	8 IN

• Specification Sheet - 1L, 1XL, 10L and 100XL
• Specification Sheet - 1L, 1XL, 10L y 100XL (Spanish)

UPC - 098268007220
