Watts 100XL-090210 - Part of the 100XL Series

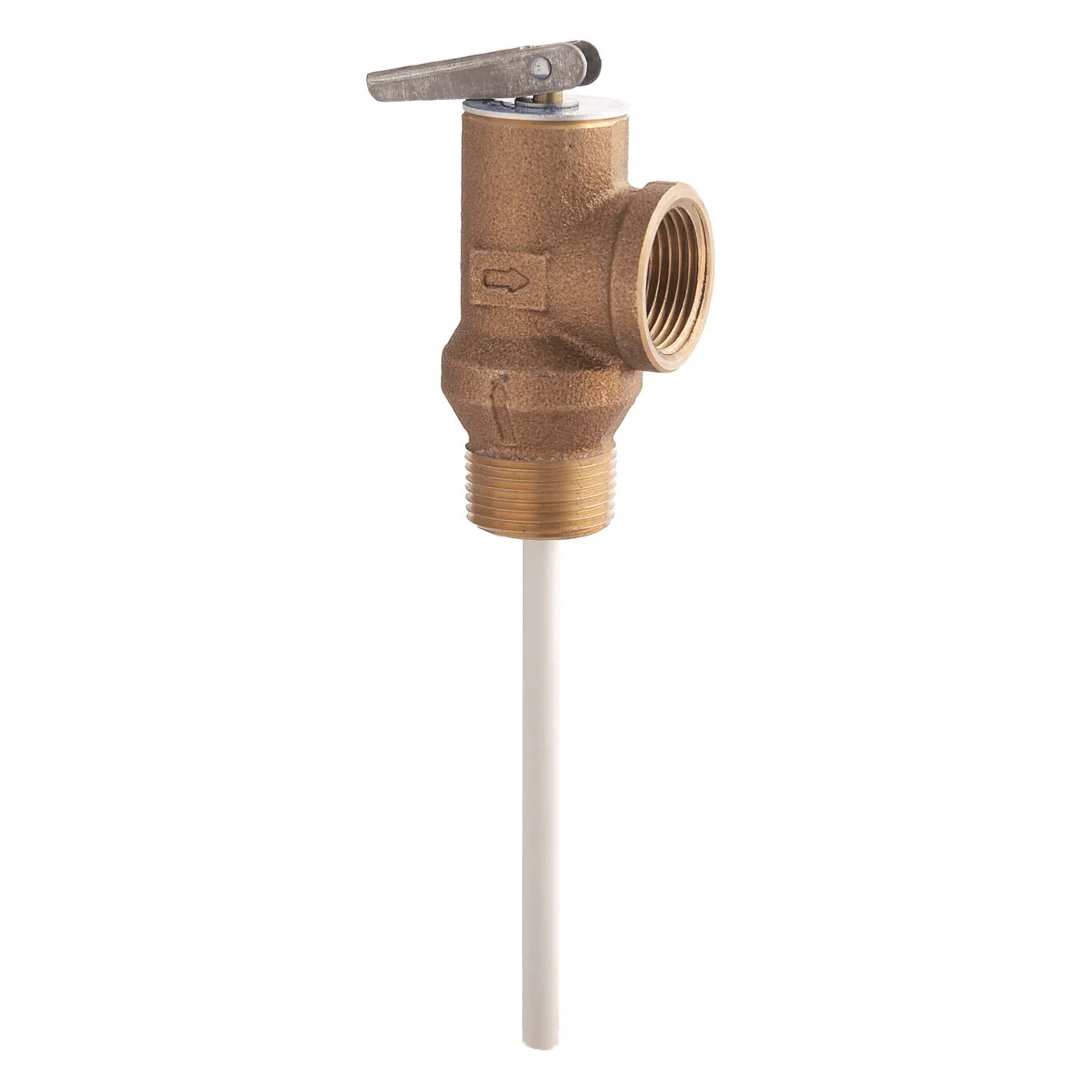

This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, 8 inch extension thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 90 psi (10.6 bar).

Features

• Pressure relief to 90 psi
• Brass body
• ASME rated and CSA listed
• Unique thermostat with special thermo-bonded coating

Specifications
Body Material	Brass
Brand	Watts
EAN	098268007046
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	90
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0066082
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	90
Protection Type	Temperature And Pressure
Series	100XL
Shank Length	1 1/8 IN
Temperature Relief-Fahrenheit	210
Thermostat Probe Length	3 IN
