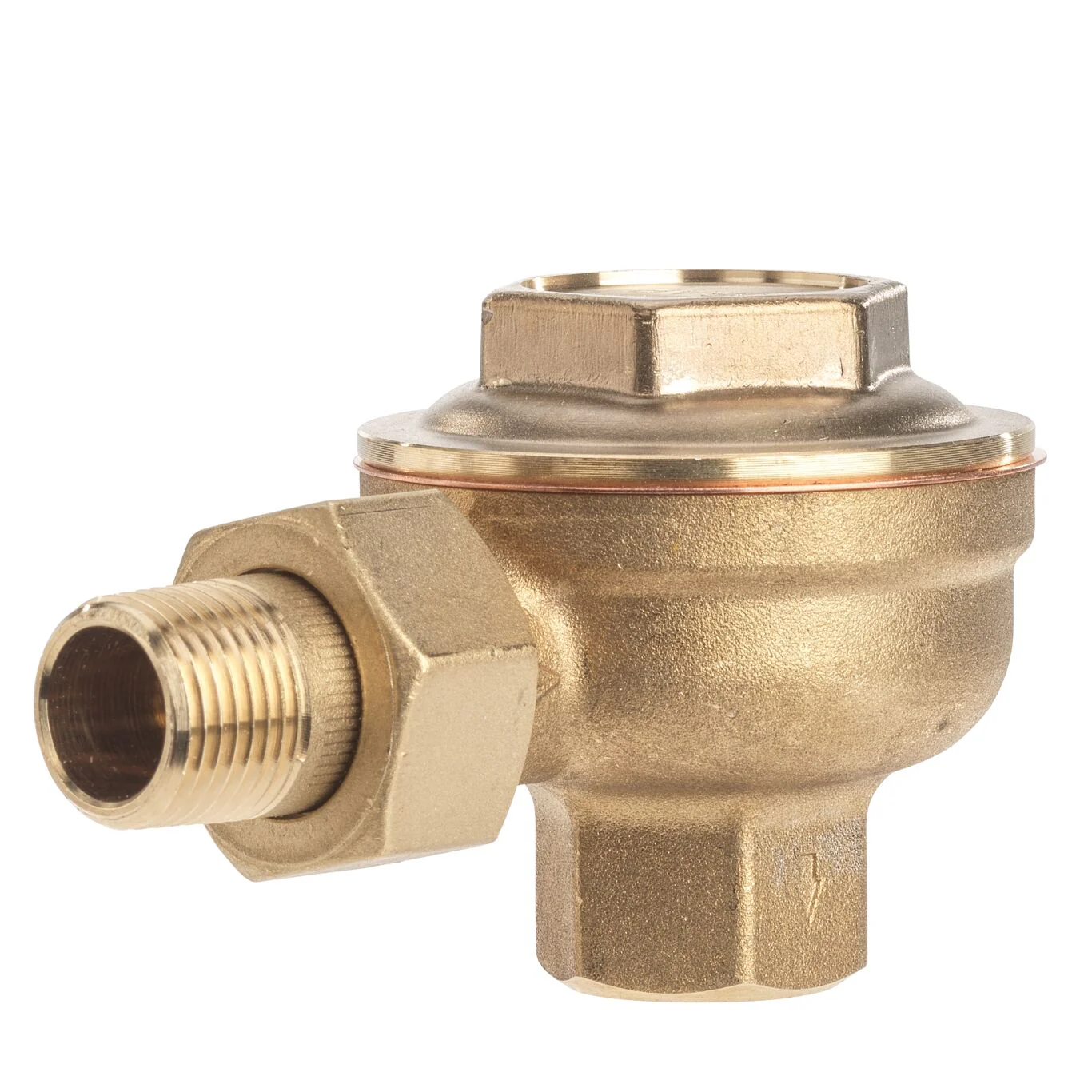

Watts 1/2 STMTRPT-1MGAP - Part of the MG Series

This 1/2 inch angle pattern thermostatic steam trap is designed to remove condensate, air and non-condensable gases from heating systems while still sensitive enough to close tightly in the presence of steam. The unit is factory calibrated and tested under live steam to ensure optimal performance. The interior spring-loaded design is designed to make it function independently from the trap body. Recommended for use on medium pressure heating equipment, process equipment and sterilizers.

Features

• Rugged brass construction
• Union inlet
• Female x female connections
• Copper sweat tailpiece

Specifications
Air Venting	No Vent
Body Material	Brass
Body Pattern	Angle
Bottom Tapping	No
Bottom Tapping Size	Does Not Apply To Product
Brand	Watts
Contact Rating	Does Not Apply To Product
EAN	098268602616
Fastfill Feature	No
Fill Tapping Size	Does Not Apply To Product
Float Chamber Connection Size	Does Not Apply To Product
Flow Rate	Does Not Apply To Product
Hydronic Item Type	Steam Trap
Inlet Connection Size	1/2 IN
Inlet Connection Size-Metric	15 MM
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	Not In Scope
Maximum Operating Temperature-Fahrenheit	267
Maximum Pressure-PSI	65
Maximum Steam Pressure-PSI	65
Maximum Temperature-Fahrenheit	267
Maximum Working Pressure-PSI	65
Minimum Pressure-PSI	25.00
Minimum Working Pressure-PSI	25.00
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0036095
Pipe Plug	No
Pressure Adjustment Range	25" to 65 PSI
Pressure Steam Discharge Capacity	Does Not Apply To Product
Purge And Drain Diameter	Does Not Apply To Product
Purge And Drain Outlet Size	Does Not Apply To Product
Series	MG
Side Tapping	No
Side Tapping Size	Does Not Apply To Product
Strainer	No
Strainer Material	Does Not Apply To Product
Switch Type	Does Not Apply To Product
Temperature Adjustment Range	Does Not Apply To Product
Temperature Range	Does Not Apply To Product
Top 1 Tapping Size	Does Not Apply To Product
Top 2 Tapping Size	Does Not Apply To Product
Top Tapping	No
Vacuum Breaker	No
Venting Capacity	Does Not Apply To Product

• Specification Sheet - G, GH, MG, MGH - Thermostatic Radiator Steam Traps - Sizes 1/2-1 IN

UPC - 098268602616
