Febco - LF800-LADWP 8 - Part of the 800 Series

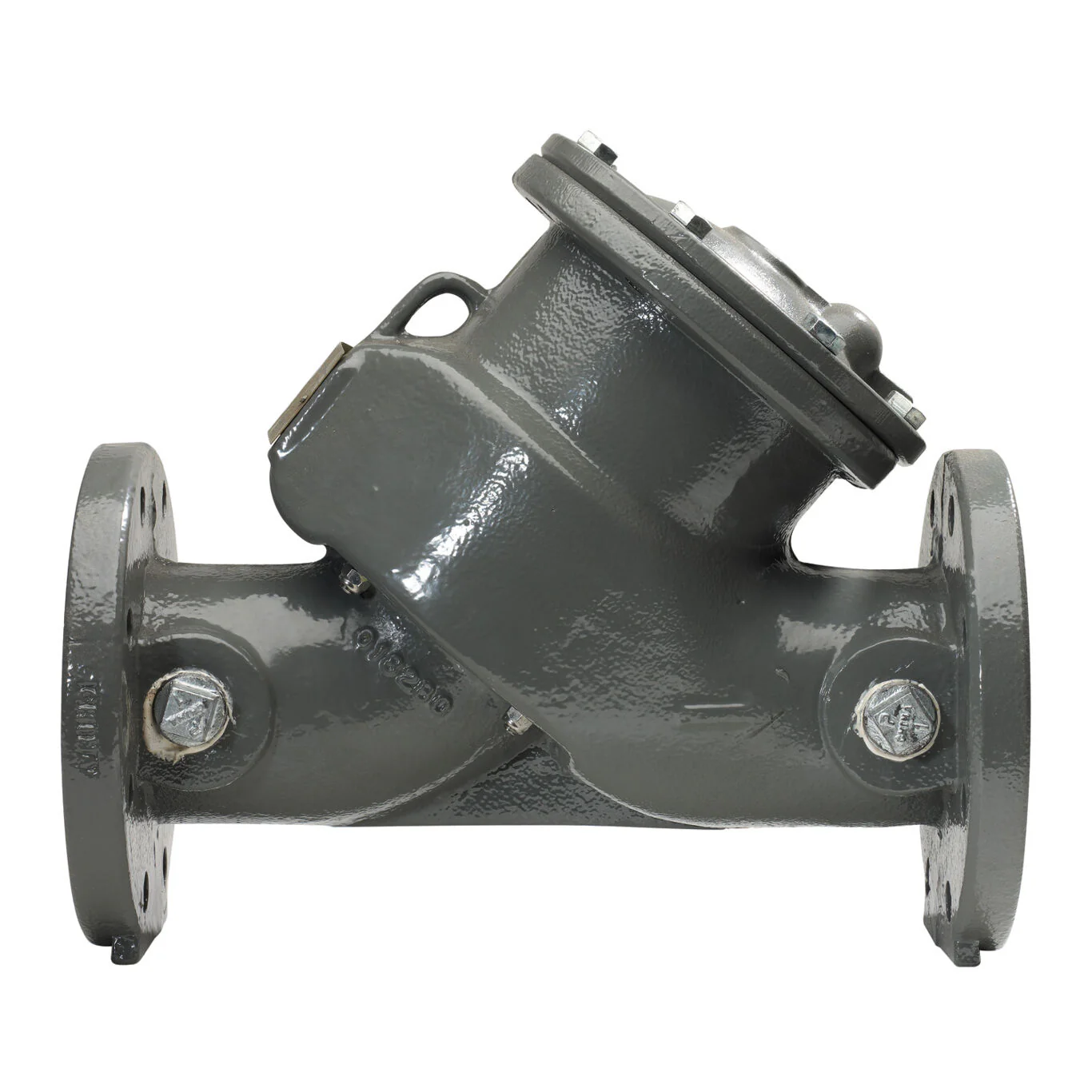

This 8 inch lead free single check detector assembly protects the potable water supplies from potential contamination from automatic fire sprinkler systems and detects unauthorized water usage. It consists of a cover and mainline check flanged body manufactured of ductile iron with fusion epoxy coating. The disc is rubber encapsulated ductile iron. The maximum working pressure is 250 psi (17.2 bar) and the temperature range is 32 to 110 degrees F (zero to 60 degrees C).

Features

• Epoxy coated for longevity
• Spring loaded swing check
• Detector bypass assembly
• 250 psi pressure rating

Specifications
Body Material	Ductile Iron
Body Pattern	Straight
Brand	FEBCO
Buy American Act Compliant	NO
Class Rating	150
Disc Material	Ductile Iron
Disc Type	Swing
EAN	643925579840
Inlet Connection Size	8 IN
Inlet Connection Size-Metric	200 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Operating Temperature-Celsius	43.00
Maximum Operating Temperature-Fahrenheit	110
Maximum Working Pressure-PSI	250
Minimum Temperature - Celsius	0.00
Minimum Temperature-Fahrenheit	32
Outlet Connection Size	8 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	88006237
Pressure-Temperature Rating	250psi, 33F to 110F
Pressure-Temperature Rating-BAR	17.2 bar, 0C to 43C
Seat Material	Stainless Steel
Series	800
WOG Rating	250 PSI

• Specification Sheet - LF800

UPC - 643925579840
