Febco - 611-MJXFL 10 - Part of the 611 Series

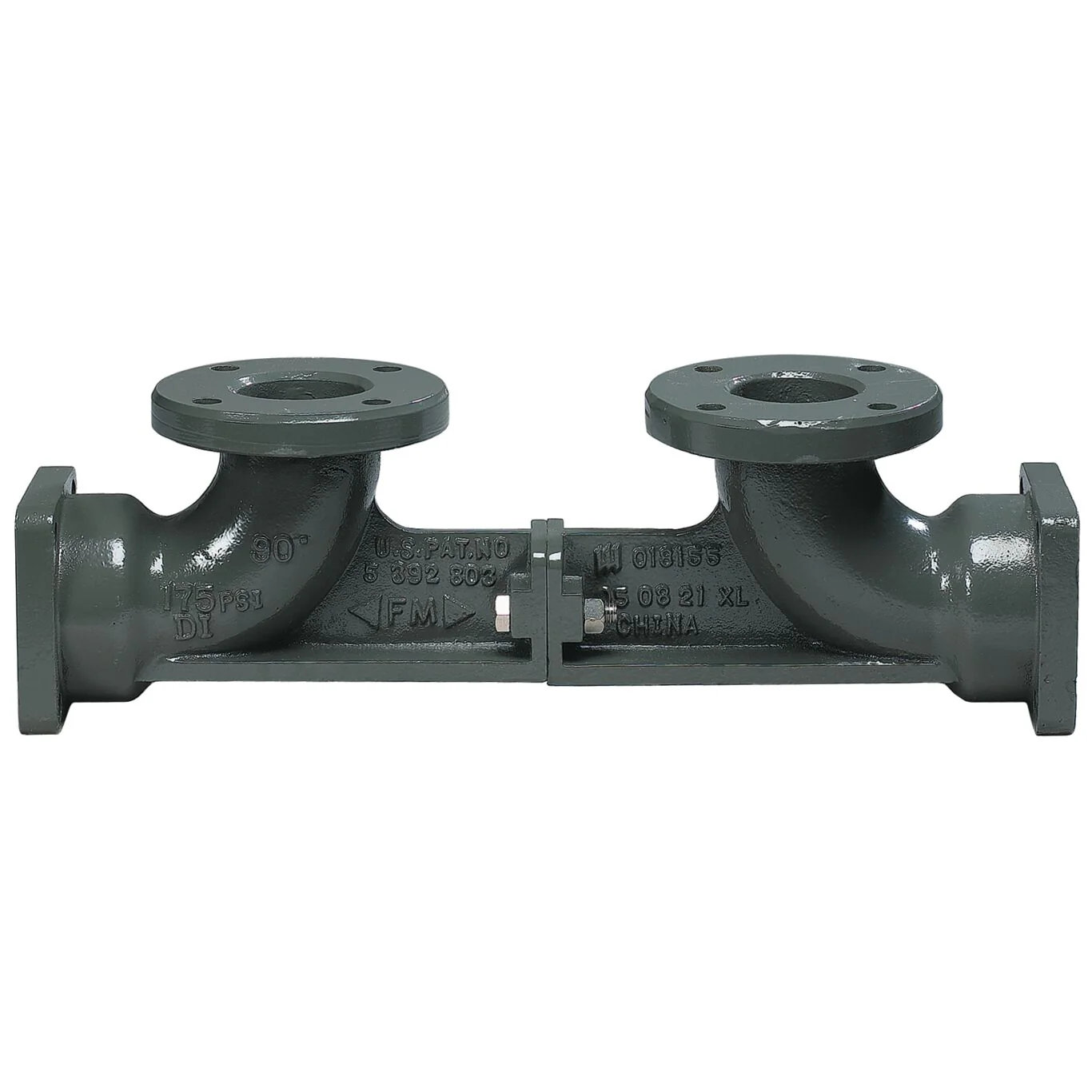

This 10 inch mechanical joint by flange valve setter is constructed of fusion epoxy coated ductile iron. It augments the installation of the MasterSeries^® N-pattern backflow preventer valve. Integral ductile iron supports between elbows transfer thrust downstream, eliminating thrust block requirements between elbows. The maximum working pressure is 175 psi (12.1 bar).

Features

• Epoxy coated for longevity
• ANSI 150 pound flanged connections
• For MasterSeries N Shape
• Stainless steel fasteners

Specifications
Body Coating Type	Fusion Epoxy Coated
Body Material	Ductile Iron
Brand	FEBCO
Center Joint Bolt Material	Stainless Steel
Center Joint Nut Material	Stainless Steel
Diameter	10 IN
EAN	643925015287
Inlet Connection Size	10 IN
Inlet Connection Size-Metric	250 MM
Inlet Connection Type	Mechanical Joint
Lead Free	YES
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Outlet Connection Size	10 IN
Outlet Connection Type	Flanged Joint
Part Number	905203
Series	611
Temperature Range	32 to 140 degree F,0 to 60 degree C

• Specification Sheet - 611 F x F
• Specification Sheet - 611 MJ x F
• Specification Sheet - 611 MJ x MJ

UPC - 643925015287
