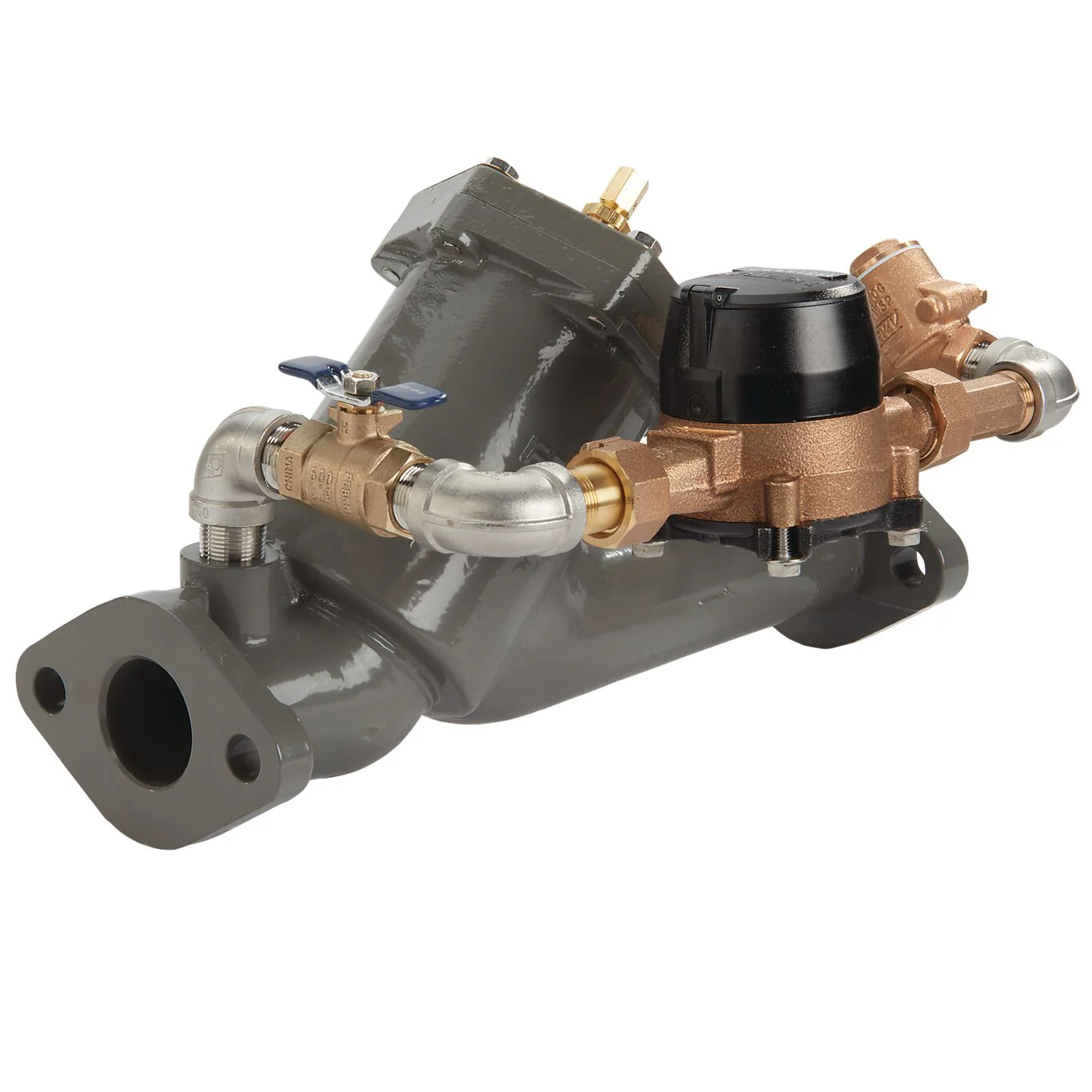

Febco - 2 LF406-GPM-RH LA - Part of the LF406 Series

This 2 lead free inch single detector check assembly is used in the protection of potable water supplies from potential contamination from automatic fire sprinkler systems and for the detection of unauthorized water usage. This assembly consists of a internally spring-loaded Y pattern check valve with lead free bronze body and cover, stainless steel replaceable seat ring, stainless steel spring and delrin disc holder to insure positive check seating. It has a gallons per minute meter. The maximum working pressure is 175 psi (12.1 bar).

Features

• Bronze body construction
• Top entry to check valves
• Corrosion resistant body and covers
• Center stem guided checks that provides low head loss

Specifications
Body Material	Lead Free Bronze
Body Pattern	Straight
Brand	FEBCO
Class Rating	125
Disc Material	Silicone
Disc Type	Poppet
EAN	643925550320
Inlet Connection Size	2 IN
Inlet Connection Size-Metric	50 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Operating Temperature-Celsius	43.00
Maximum Operating Temperature-Fahrenheit	110
Maximum Working Pressure-PSI	175
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	2 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	88005355
Pressure-Temperature Rating	175psi-110F
Pressure-Temperature Rating-BAR	12.1bar-43C
Seat Material	316 Stainless Steel
Series	LF406
WOG Rating	WOG

• Specification Sheet - LF406

UPC - 643925550320
